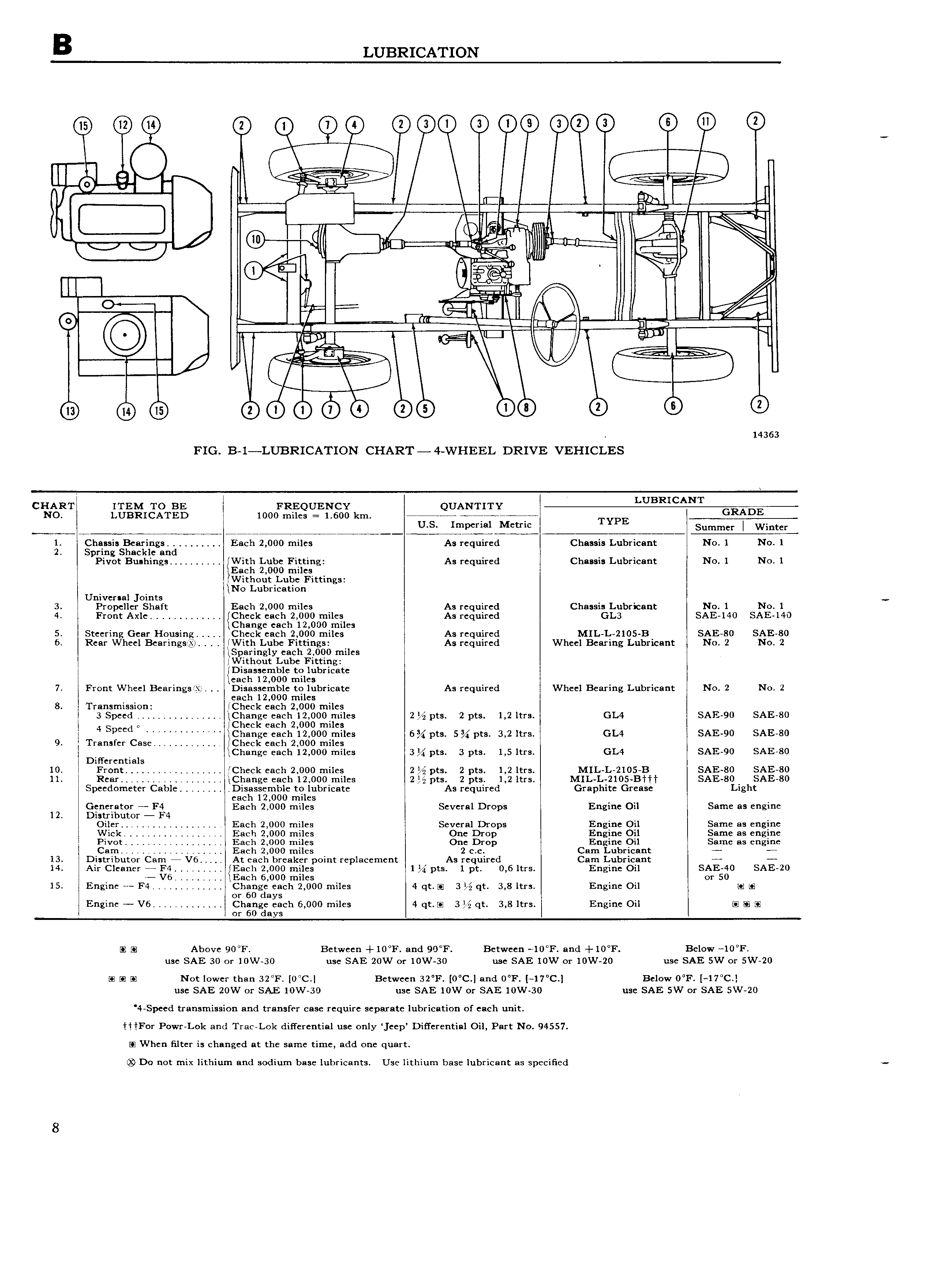

B LUBRICATION II 6 S Q Q l I ILZ I 1 1 1 U lil Y Wg Pt I vll l Il as x ei t t Z M 11 1 1 Millar 1 0 Q A 3 I II I Aeggvle O i i ll s g me r Q mg iis c IK QB I jk l ra 14363 FIG B 1 LUBRICATION CHART 4 WHEEL DRIVE VEHICLES CHART ITEM TO BE FREQUENCY QUANTITY N0 LUBRICATED 1 1000 miles Z 1 600 km f TYPE v c cQcc ccEcYc w lEi E E 1 Chassis Bearings Each 2 000 miles As required Chassis Lubricant No 1 No 1 2 Spring Shackle and Pivot Bushings With Lube Fitting As required Chassis Lubricant No 1 No 1 Each 2 000 miles 1Without Lube Fittings No Lubrication Universal joints 3 Propeller Shaft Each 2 000 miles As required Chassis Lubricant N0 1 No 1 4 Front Axle Check each 2 000 miles As required GL3 SAE 140 SAE 141 Change each 12 000 miles 5 Steering Gear Housing Check each 2 000 miles As required MIL L 2l05 B SAE 80 SAE 80 6 Rear Wheel Bearingsiy With Lube Fittings As required Wheel Bearing Lubricant No 2 No 2 1Sparingly each 2 000 miles Without Lube Fitting 1 Disassemble to lubricate each 12 000 miles 7 Front Wheel Bearings X Disassemble to lubricate As required Wheel Bearing Lubricant No 2 No 2 each 12 000 miles 8 1 Transmission fCheck each 2 000 miles i 3 Speed i Change each 12 000 miles 2 L pts 2 pts 1 2 ltrs GL4 SAE 90 SAE 80 i 4 S ged O Check each 2 000 miles P Change each 12 000 miles 6 pts 5 pts 3 2 ltrs GL4 SAE 90 SAE 80 9 Transfer Case Check each 2 000 miles 1 1Change each 12 000 miles 3 M pts 3 pts 1 5 ltrs GL4 SAE 90 SAE 80 Differentials 10 1 Front Check each 2 000 miles 2 pts 2 pts 1 2 ltrs MIL L 2105 B SAE 80 SAE 80 ll Rear Change each 12 000 miles 2 l pts 2 pts 1 2 ltrs MIL L 2105 BTTT SAE 80 SAE 80 Speedometer Cable Disassemble to lubricate As required Graphite Grease Light each 12 000 miles Generator F4 Each 2 000 miles Several Drops Engine Oil Same as engine 12 Distributor F4 Oiler Each 2 000 miles Several Drops Engine Oil Same as engine Wick Each 2 000 miles One Drop Engine Oil Same as engine Pivot Each 2 000 miles One Drop Engine Oil Same as engine Cam Each 2 000 miles 2 c c Cam Lubricant 13 Distributor Cam f V6 At each breaker point replacement As required Cam Lubricant 14 Air Cleaner F4 Each 2 000 miles 1 pts 1 pt 0 6 ltrs Engine Oil SAE 40 SAE 20 V6 Each 6 000 miles or 50 15 Engine F4 Change each 2 000 miles 4 qt EJ 3 l qt 3 8 ltrs Engine Oil lex LQ or 60 days Engine V6 Change each 6 000 miles 4 qt lil 3 LQ qt 3 8 ltrs Engine Oil E B or 60 days E Q Above 90 F Between 10 F and 90 F Between 10 F and 10 F Below 10 F use SAE 30 or 10W 30 use SAE 20W or 10W 30 use SAE 10W or 10W 20 use SAE 5W or SW 20 E 1 Not lower than 32 F 0 C Between 32 F 0 C and 0 F l7 C Below 0 F l7 C use SAE 20W or SAE 10W 30 use SAE 10W or SAE 10W 30 use SAE SW or SAE SW 20 4 Speed transmission and transfer case require separate lubrication of each unit H For Powr Lok and Trac Lok differential use only eep Differential Oil Part N0 94557 lll When filter is changed at the same time add one quart Do not mix lithium and sodium base lubricants Use lithium base lubricant as specified 8
