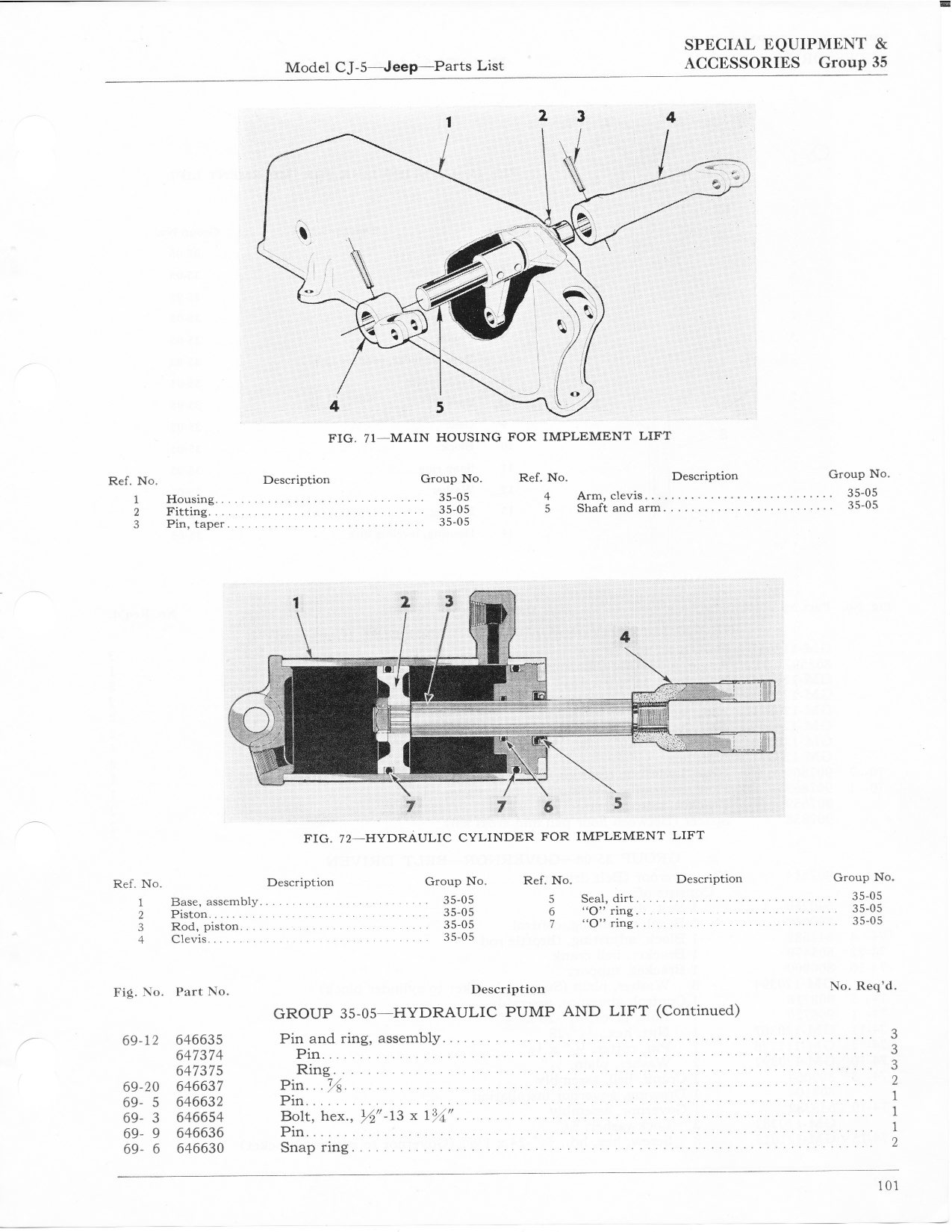

SPECIAL EQUIPMENT Model C 5 Jeep Parts List ACCESSORIES Group 35 1 2 3 4 N en N is I ei K F V V KN gi r J 5 P FIG 71 MAIN HOUSING FOR IMPLEMENT LIFT Ref No Description Group No Ref No Description Group No 1 Housing 4 35 05 4 Arm cievis i 35 05 2 Fitting 35 05 5 Shaft and arm i 35 05 3 Pin taper i 35 OS I 1 2 at i V isp I z z e s gi 7 V i 2 i r A J i i Ailil TM niv I I We i w V 4 er 1 i I i N g 1 7 is 5 FIG 72 I IYDRAULIC CYLINDER FOR IMPLEMENT LIFT Ref No Description Group No Ref No Description Group N0 1 Base assemblyu 35 05 5 Seal dirt 4 35 05 2 Piston 35 05 6 O ring 35 05 3 Rod piston 35 05 7 O ring 35 05 4 Clevis 35 05 Fig I 0 Part No Description No Req d GROUP 35 05 HYDRAULIC PUMP AND LIFT Continued V 69 12 646635 Pin and ring assembly r 3 647374 Pin 3 647375 Ring 3 69 20 646637 Pin 2 69 5 646632 Pin I 69 3 646654 Bolt hex M 13 x1 I 1 69 9 646636 Pin I 69 6 646630 Snapringw 2 101
