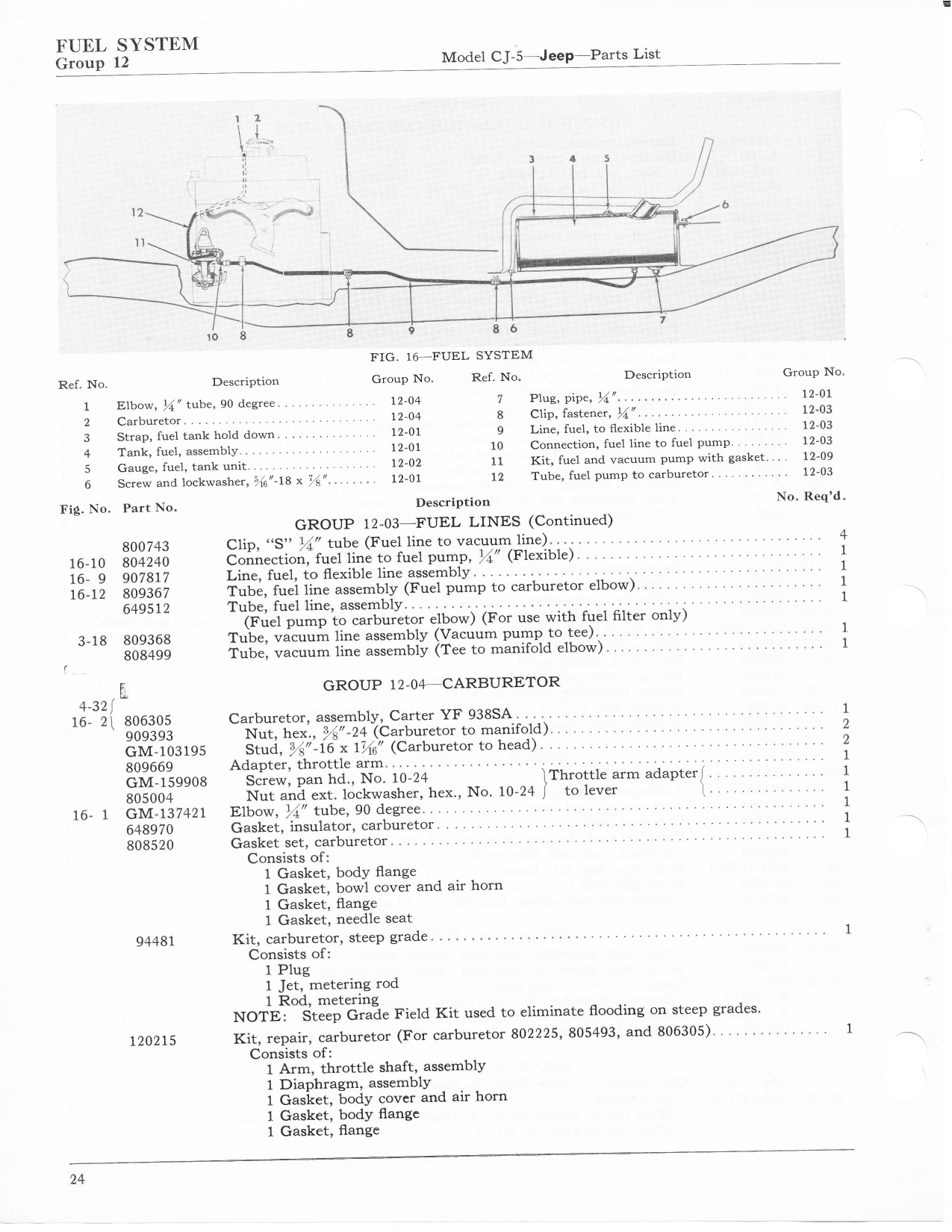

FUEL SYSTEM Group 12 Model CJ 5 Jeep Parts List 1 1 l L E S i 4 5 f o q 1 i Y WM Q 2 Z J mir v 4A r e X Wg El 1 Q l i 1 in s s 9 S 6 FIG 16 FUEL SYSTEM A i Ref No Description Group No Ref No Description Group No 1 Elbow tube 90 degree i 12 04 7 Plug pipe M 12 01 2 Carburetor 12 04 8 Clip fastener i 12 03 3 Strap fuel tank hold down 12 01 9 Line fuel to flexible line 12 03 4 Tank fuel assembly 12 01 10 Connection fuel line to fuel pump 12 03 5 Gauge fuel tank unit 12 02 11 Kit fuel and vacuum pump with gasket 12 09 6 Screw and lockwasher 5 18 x 12 01 12 Tube fuel purnp to carburetor 12 03 Fig Nu Part No Description No Req d GROUP 12 03 FUEL LINES Continued 800743 Clip S tube Fuel line to vacuum line 4 16 10 804240 Connection fuel line to fuel pump Flexible 1 16 9 907817 Line fuel to flexible line assembly i 1 16 12 809367 Tube fuel line assembly Fuel pump to carburetor elbow i 1 649512 Tube fuel line assembly l l4 1 Fuel pump to carburetor elbow For use with fuel filter only 3 18 809368 Tube vacuum line assembly Vacuum pump to tee 1 808499 Tube vacuum line assembly Tee to manifold elbow 1 r E GROUP 12 04 CARBURETOR 4 32 16 2l 806305 Carburetor assembly Carter YF 938SA 1 909393 Nut hex 24 Carburetor to manifold 2 GM 103195 Stud 16 x 1 Carburetor to head 2 809669 Adapter throttle arm 1 GM 159908 Screw pan hd N0 10 24 lThrottle arm adapter 1 805004 Nut and ext lockwasher hex No 10 24 to lever L 1 16 1 GM 137421 Elbow M tube 90 degree 1 648970 Gasket insulator carburetor 1 808520 Gasket set carburetor 1 Consists of 1 Gasket body flange 1 Gasket bowl cover and air horn 1 Gasket flange 1 Gasket needle seat 94481 Kit carburetor steep grade 1 Consists of 1 Plug 1 Jet metering rod 1 Rod metering NOTE Steep Grade Field Kit used to eliminate flooding on steep grades 120215 Kit repair carburetor For carburetor 802225 805493 and 806305 1 Consists of 1 Arm throttle shaft assembly 1 Diaphragm assembly 1 Gasket body cover and air horn 1 Gasket body flange 1 Gasket flange 24
