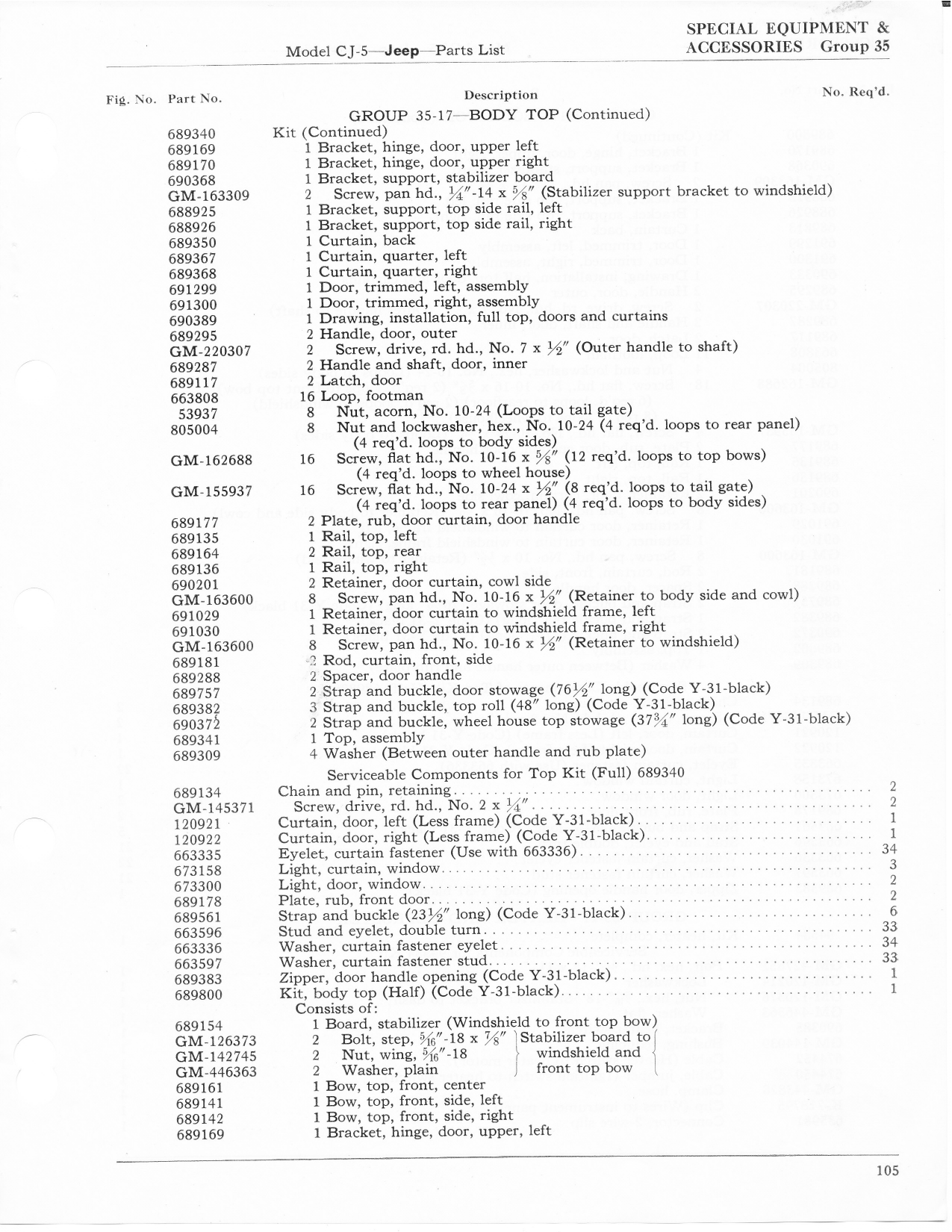

r n SPECIAL EQUIPMENT Model C 5 Jeep Parts List ACCESSORIES Group 35 Fig No Part No Description No Req d GROUP 35 17 BODY TOP Continued 689340 Kit Continued 689169 1 Bracket hinge door upper left 689170 1 Bracket hinge door upper right 690368 1 Bracket support stabilizer board GM 163309 2 Screw pan hd M 14 x Stabilizer support bracket to windshield 688925 1 Bracket support top side rail left 688926 1 Bracket support top side rail right 689350 1 Curtain back 689367 1 Curtain quarter left 689368 1 Curtain quarter right 691299 1 Door trimmed left assembly 691300 1 Door trimmed right assembly 690389 1 Drawing installation full top doors and curtains 689295 2 Handle door outer GM 220307 2 Screw drive rd hd No 7 x Outer handle to shaft 689287 2 Handle and shaft door inner 689117 2 Latch door 663808 16 Loop footman 53937 8 Nut acorn No 10 24 Loops to tail gate 805004 8 Nut and lockwasher hex No 10 24 4 req d loops to rear panel 4 req d loops to body sides GM 162688 16 Screw flat hd No 10 16 x 12 req d loops to top bows 4 req d loops to wheel house GM 155937 16 Screw flat hd No 10 24 x Mg 8 req d loops to tail gate 4 req d loops to rear panel 4 req d loops to body sides 689177 2 Plate rub door curtain door handle 689135 1 Rail top left 689164 2 Rail top rear 689136 1 Rail top right 690201 2 Retainer door curtain cowl side GM 163600 8 Screw pan hd N0 10 16 x Retainer to body side and cowl 691029 1 Retainer door curtain to windshield frame left 691030 1 Retainer door curtain to windshield frame right GM 163600 8 Screw pan hd No 10 16 x M2 Retainer to windshield 689181 2 Rod curtain front side 689288 2 Spacer door handle 689757 2 Strap and buckle door stowage 76 long Code Y 31 black 689382 3 Strap and buckle top roll 48 long Code Y 31 black 690372 2 Strap and buckle wheel house top stowage 37 long Code Y 31 black 689341 1 Top assembly 689309 4 Washer Between outer handle and rub plate Serviceable Components for Top Kit Full 689340 689134 Chain and pin retaining 2 GM 145371 Screw drive rd hd No 2 x V 2 120921 Curtain door left Less frame Code Y 31 black 1 120922 Curtain door right Less frame Code Y 31 black V 1 663335 Eyelet curtain fastener Use with 663336 V 34 673158 Light curtain window V V V 3 673300 Light door window V V V V V V 2 689178 Plate rub front door V V V V V 2 689561 Strap and buckle 23 long Code Y 31 black V V 6 663596 Stud and eyelet double turn V V V V 33 663336 Washer curtain fastener eyelet V V V V 34 663597 Washer curtain fastener stud V V V V V 33 689383 Zipper door handle opening Code Y 31 black VV VV V VV 1 689800 Kit body top Half Code Y 31 black V V VV 1 Consists of 689154 1 Board stabilizer Windshield to front top bow GM 126373 2 Bolt step 18 x Stabilizer board to GM 142745 2 Nut wing 18 L windshield and GM 446363 2 Washer plain j front top bow 689161 1 Bow top front center 689141 1 Bow top front side left 689142 1 Bow top front side right 689169 1 Bracket hinge door upper left 105
