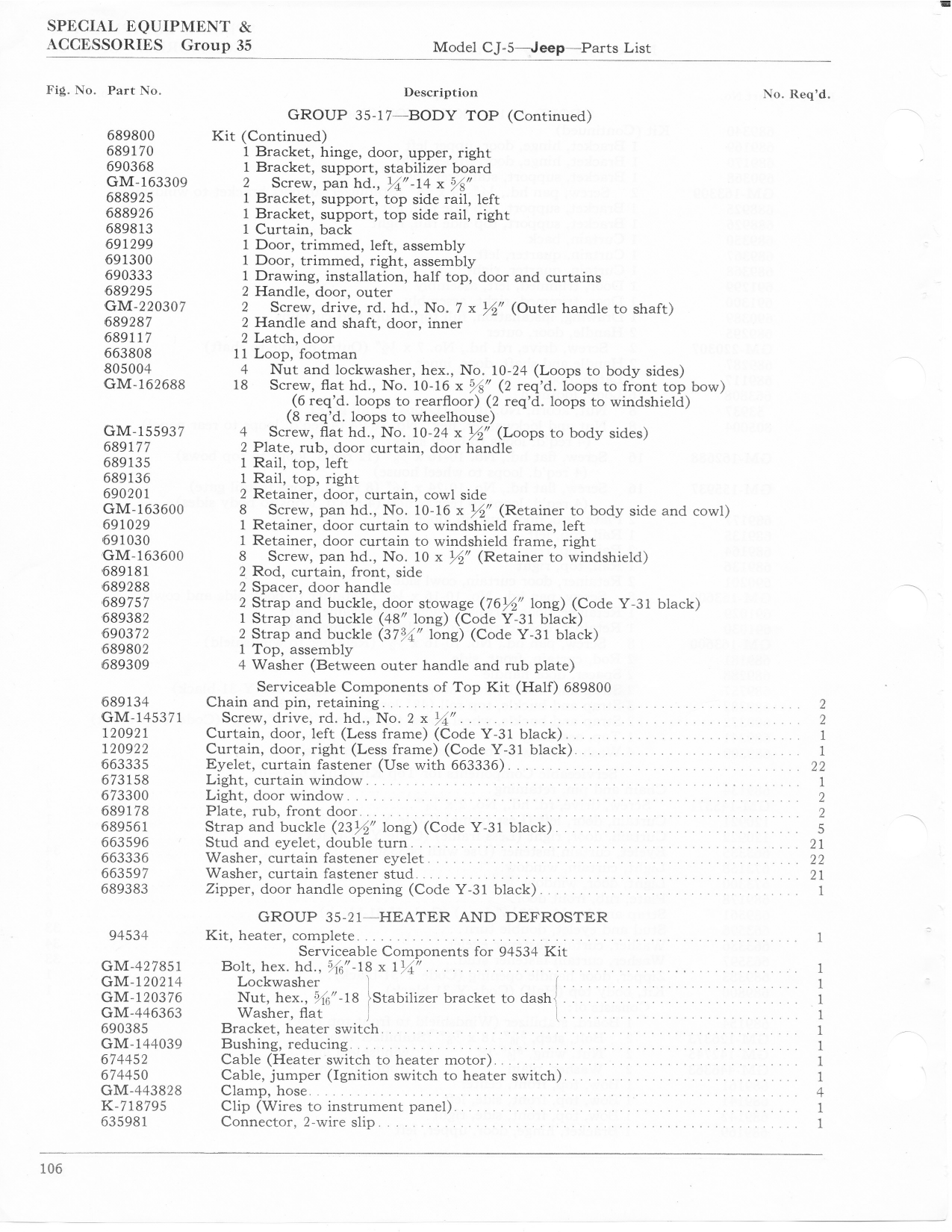

CJ-5 Parts List July 1955 |
|
PrevNext
689800
689170
690368
163309
688925
688926
689813
691299
691300
690333
689295
220307
689287
689117
663808
805004
162688
155937
689177
689135
689136
690201
163600
691029
691030
163600
689181
689288
689757
689382
690372
689802
689309
689800
689134
145371
120921
120922
663335
663336
673158
673300
689178
689561
663596
663336
663597
689383
427851
120214
120376
446363
690385
144039
674452
674450
443828
718795
635981
SPECIAL EQUIPMENT ACCESSORIES Group 35 Model CJ 5 Jeep Parts List Fig No Part No Description No Req d GROUP 35 17 BODY TOP Continued 689800 Kit Continued 689170 1 Bracket hinge door upper right 690368 1 Bracket support stabilizer board GM 163309 2 Screw pan hd 14 x 688925 1 Bracket support top side rail left 688926 1 Bracket support top side rail right 689813 1 Curtain back 691299 1 Door trimmed left assembly 691300 1 Door trimmed right assembly 690333 1 Drawing installation half top door and curtains 689295 2 Handle door outer GM 220307 2 Screw drive rd hd No 7 x X2 Outer handle to shaft 689287 2 Handle and shaft door inner 689117 2 Latch door 663808 11 Loop footman 805004 4 Nut and lockwasher hex No 10 24 Loops to body sides GM 162688 18 Screw flat hd No 10 16 x 2 req d loops to front top bow 6 req d loops to rearfloor 2 req d loops to windshield 8 req d loops to wheelhouse GM 155937 4 Screw flat hd N0 10 24 x Loops to body sides 689177 2 Plate rub door curtain door handle 689135 1 Rail top left 689136 1 Rail top right 690201 2 Retainer door curtain cowl side GM 163600 8 Screw pan hd No 10 16 x Retainer to body side and cowl 691029 1 Retainer door curtain to windshield frame left 691030 1 Retainer door curtain to windshield frame right GM 163600 8 Screw pan hd No 10 x Retainer to windshield 689181 2 Rod curtain front side 689288 2 Spacer door handle e 689757 2 Strap and buckle door stowage 76 long Code Y 31 black 689382 1 Strap and buckle 48 long Code Y 31 black 690372 2 Strap and buckle 37 long Code Y 31 black 689802 1 Top assembly 689309 4 Washer Between outer handle and rub plate Serviceable Components of Top Kit Half 689800 689134 Chain and pin retaining 2 GM 145371 Screw drive rd hd No 2 x Li 2 120921 Curtain door left Less frame Code Y 31 black 1 120922 Curtain door right Less frame Code Y 31 black 1 663335 Eyelet curtain fastener Use with 663336 22 673158 Light curtain window 1 673300 Light door window 2 689178 Plate rub front door 2 689561 Strap and buckle 23 long Code Y 31 black 5 663596 Stud and eyelet double turn 21 663336 Washer curtain fastener eyelet 22 663597 Washer curtain fastener stud 21 689383 Zipper door handle opening Code Y 31 black 1 GROUP 35 21 HEATER AND DEFROSTER 94534 Kit heater complete 1 Serviceable Components for 94534 Kit GM 427851 Bolt hex hd 18 x1 1 GM 120214 Lockwasher 1 1 i GM 120376 Nut hex 18 Stabilizer bracket to dash 1 GM 446363 Washer flat 1 690385 Bracket heater switch 1 GM 144039 Bushing reducing 1 674452 Cable Heater switch to heater motor 1 674450 Cable jumper Ignition switch to heater switch 1 GM 443828 Clamp h0se 4 K 718795 Clip Wires to instrument panel 1 635981 Connector 2 wire slip l 106
