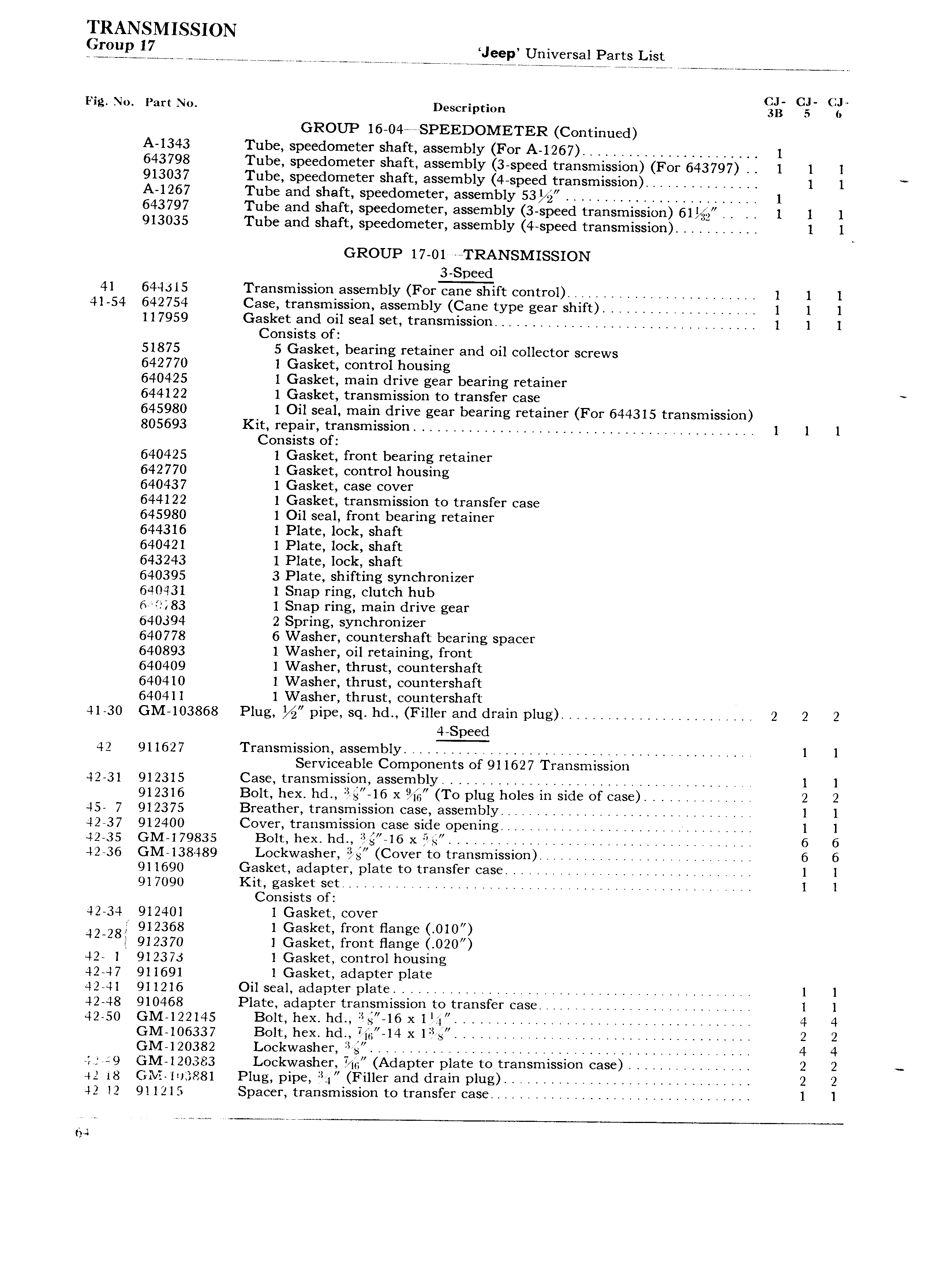

TRANSMISSION 9E iZ W M gm J p Universal Parts List Fig No Part No Description gg Cgi GROUP 16 044 SPEEDOMETER Continued A 1343 Tube speedometer shaft assembly For A 1267 1 643798 Tube speedometer shaft assembly 3 speed transmission For 643797 1 1 1 913037 Tube speedometer shaft assembly 4 speed transmission ll 1 1 A 1267 Tube and shaft speedometer assembly 53 1 643797 Tube and shaft speedometer assembly 3 speed transmission 61 1 1 1 913035 Tube and shaft speedometer assembly 4 speed transmission I 1 1 GROUP 17 01 TRANSMISSION 3 Speed 41 644315 Transmission assembly For cane shift control 1 1 1 41 54 642754 Case transmission assembly Cane type gear shift 1 1 1 117959 Gasket and oil seal set transmission l 1 1 1 Consists of 51875 5 Gasket bearing retainer and oil collector screws 642770 1 Gasket control housing 640425 1 Gasket main drive gear bearing retainer 644122 1 Gasket transmission to transfer case 645980 1 Oil seal main drive gear bearing retainer For 644315 transmission 805693 Kit repair transmission i 1 1 1 Consists of 640425 1 Gasket front bearing retainer 642770 1 Gasket control housing 640437 1 Gasket case cover 644122 1 Gasket transmission to transfer case 645980 1 Oil seal front bearing retainer 644316 1 Plate lock shaft 640421 1 Plate lock shaft 643243 1 Plate lock shaft 640395 3 Plate shifting synchronizer 64 0431 1 Snap ring clutch hub 6 f3 83 1 Snap ring main drive gear 640394 2 Spring synchronizer 640778 6 Washer countershaft bearing spacer 640893 1 Washer oil retaining front 640409 1 Washer thrust countershaft 640410 1 Washer thrust countershaft 640411 1 Washer thrust countershaft 41 30 GM 103868 Plug M2 pipe sq hd Filler and drain plug l 2 2 2 4 Speed 42 911627 Transmission assembly i 1 1 Serviceable Components of 911627 Transmission 42 31 912315 Case transmission assembly l 1 1 912316 Bolt hex hd il Q 16 x 9 jQ To plug holes in side of case 2 2 45 7 912375 Breather transmission case assembly 1 1 42 37 912400 Cover transmission case side opening 1 1 12 35 GM 179835 Bolt hex hd 5 16 x 6 6 42 36 GM l38489 Lockwasher if Q Cover to transmission 6 6 91 1690 Gasket adapter plate to transfer case 1 1 917090 Kit gasket set l 1 1 Consists of 42 34 912401 1 Gasket cover 4228 912368 1 Gasket front flange 010 912370 1 Gasket front flange 020 42 1 912373 1 Gasket control housing 42 47 911691 1 Gasket adapter plate 42 41 911216 Oil seal adapter plate l 1 1 42 48 910468 Plate adapter transmission to transfer case 1 1 42 50 GM 122145 Bolt hex hd wg 16 X 11 4 4 GM 106337 Bolt hex hd 7 j 14 x Ng 2 2 GM 120382 Lockwasher Kg 4 4 4 49 GM 120383 Lockwasher YqQ Adapter plate to transmission case 2 2 42 18 GI rE l J l881 Plug pipe ii Filler and drain plug l 2 2 42 12 91 1215 Spacer transmission to transfer case 1 1 fyi
