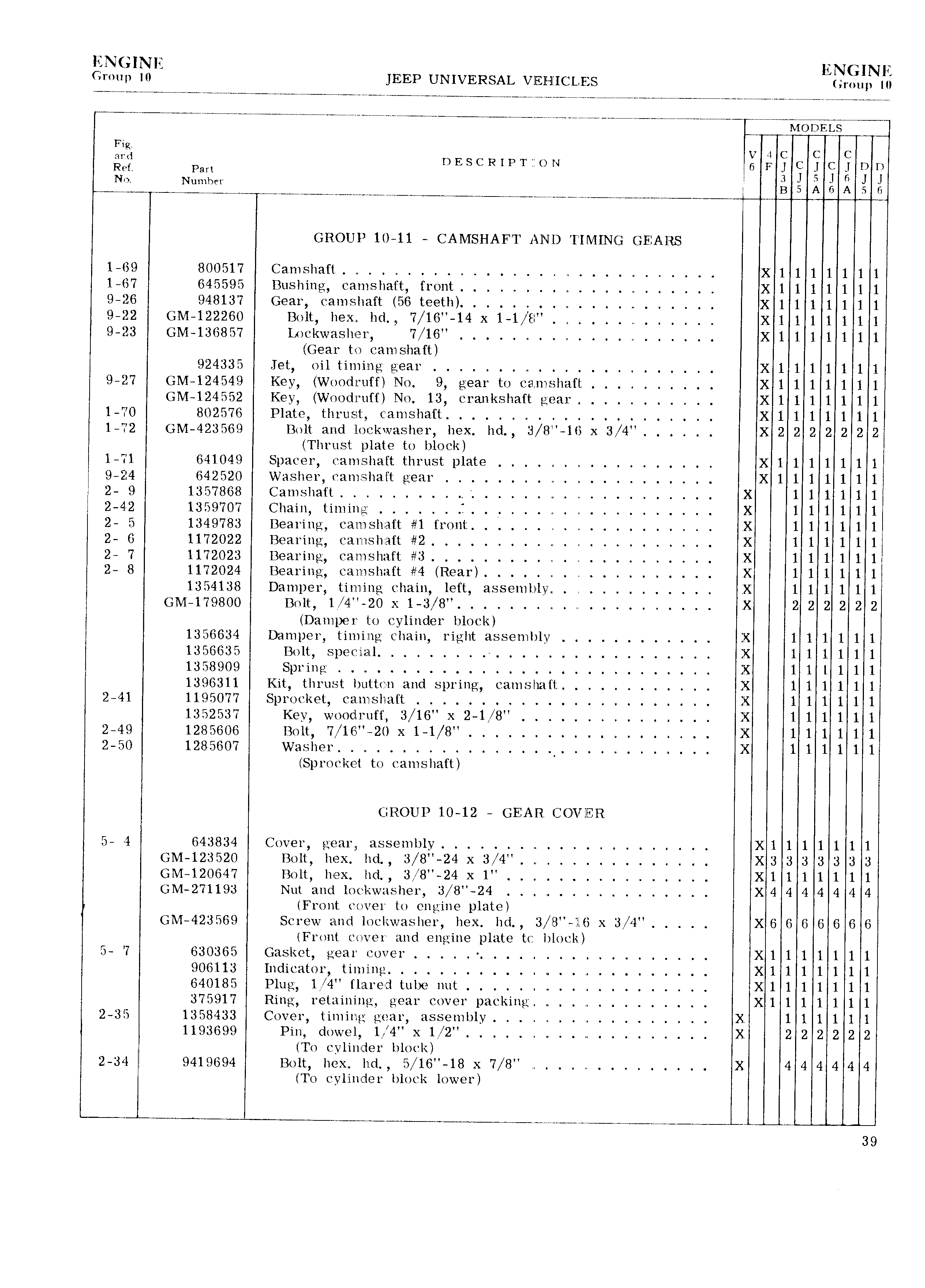

ENGINE ENGINE Group 10 JEEP UNIVERSAL VlE HtIC I ES Group I0 ww rmwwl Mi5 7 F5 Yr Efs gf H v 4 e c c REL pam I ESCRIP I J N 6 F J g 3 D rp N0 Number 1 g A F1 GROUP 10 11 CAMSHAFT ANI TIMING GEARS 1 69 800517 Camshaft X 1 1 1 1 1 1 1 67 645595 Bushing camshaft front I X 1 1 1 1 1 1 9 26 948137 Gear camshaft 56 teeth 4 X 1 1 1 1 1 1 9 22 GM 122260 Bolt hex hd 7 16 14 x 1 1 V8 n X 1 1 1 1 1 1 9 23 GM 136857 Lockwasher 7 16 X 1 1 1 1 1 1 Gear to camshaft 924335 Jet oil timing gear 4 X 1 1 1 1 1 1 9 27 GM 124549 Key Woodruff No 9 gear to camshaft X 1 1 1 1 1 1 GM 124552 Key Woodruff No 13 crankshaft gear X 1 1 1 1 1 1 1 70 802576 Plate thrust camshaft X 1 1 1 1 1 1 1 72 GM 423569 Bolt and ilockwasher hex hd 3 8 16 x 3 4 X 2 2 2 2 2 2 Thrust plate to block 1 71 641 049 Spacer camshaft thrust plate X 1 1 1 1 1 1 9 24 642520 Washer camshaft gear X 1 1 1 1 1 1 2 9 1357868 Camshaft Q X 1 1 1 1 1 1 l 2 4 2 1359707 Chain timing T X 1 1 1 1 1 1 2 5 1349783 Bearing camshaft 1 front X 1 1 1 1 1 1 2 6 1172022 Bearing camshaft 2 X 1 1 1 1 1 1 2 7 1172023 Bearing cannshaft 3 X 1 1 1 1 1 lf 2 8 1172024 Bearing camshaft 4 Rear X 1 1 1 1 1 1 1354138 Damper timing chain left assembly X 1 1 1 1 1 1 GM 179800 Bolt 1 4 20 x 1 3 8 X 2 2 2 2 2 2 Damper to cylinder block 1356634 Damper timing chain right assembly X 1 1 1 1 1 1 1356635 Bolt special X 1 1 1 1 1 1 1358909 Spring X 1 1 l 1 1 1 1396311 Kit thrust button and spring camshaft X 1 1 1 1 1 1 2 41 1195077 Sprocket camshaft X 1 1 1 1 1 1 1352537 Key woodruff 3 16 x 2 1 8 X 1 1 1 1 1 1 2 49 1285606 Bolt 7 16 20 x 1 1 8 X 1 1 1 1 1 1 2 50 1285607 Washer X 1 1 1 1 1 1 Sprocket to camshaft GROUP 10 12 GEAR COVER 5 4 643834 Cover gear assembly X 1 1 1 1 1 1 GM 123520 Bolt hex hd 3 8 24 x 3 4 X 3 3 3 3 3 3 GM 120647 Bolt hex hd 3 8 24 x 1 X 1 1 1 1 1 1 GM 271193 Nut and lockwasher 3 8 24 A X 4 4 4 4 4 4 Front cover to engine plate GM 423569 Screw and lockwasher hex hd 3 8 3 6 x 3 4 X 6 6 6 6 6 6 Front cover and engine plate tc block 5 7 630365 Gasket gear cover X 1 1 1 1 1 1 906113 Indicator timing X 1 1 1 1 1 1 640185 Plug 1 4 flared tube nut X 1 1 1 1 1 1 375917 Ring retaining gear cover packing X 1 1 1 1 1 1 2 35 1358433 Cover timing gear assembly X 1 1 1 1 1 1 1193699 Pin dowel 1 4 x 1 2 X 2 2 2 2 2 2 To cyli1n ier block 2 3 L1 9419694 Bolt hext hd 5 16 18 x 7 8 X 4 4 4 4 4 4 To cyl ln d er block lower 39
