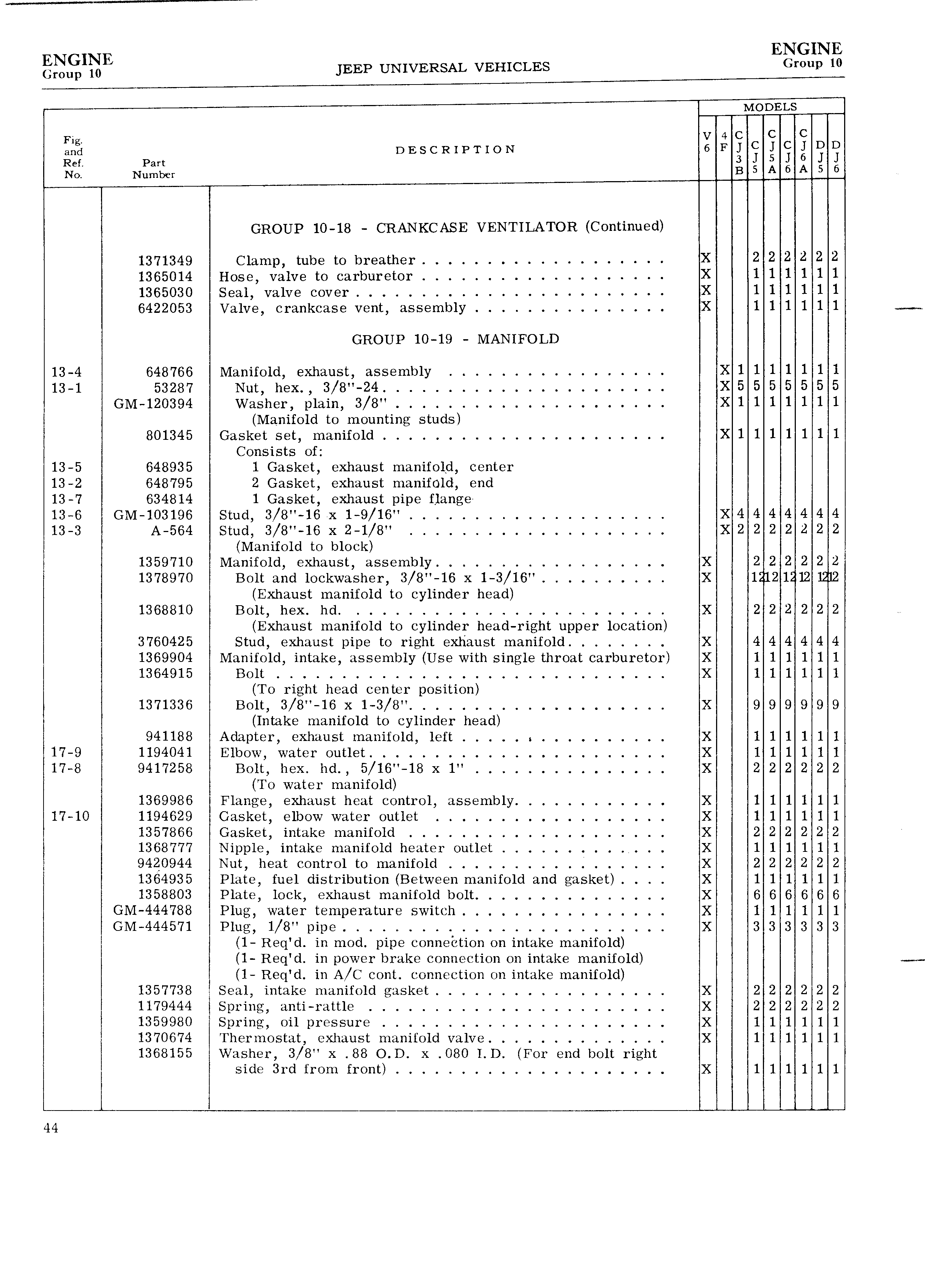

ENGINE g H E JEEP UNIVERSAL VEHI Fig v 4 c C C and sscR11 r1oN 6 FJC JCJDD Ref Part 3J5 6J I No Number B S A 6 A 5 6 GROUP 10 18 CRANKCASE VENTILATOR Continued 1371349 Clamp tube to breather X 2 2 2 2 2 2 1365014 Hose valve t0 carburetor X 1 1 1 1 1 1 1365030 Seal valve cover X 1 1 1 1 1 1 6422053 Valve crankcase vent assembly X 1 1 1 1 1 1 1 GROUP 10 19 MANIFOLD 13 4 648766 Manifold exhaust assembly X 1 1 1 1 1 1 1 13 1 53287 Nut hex 3 8 24 X 5 5 5 5 5 5 5 GM 120394 Washer plain 3 8 X 1 1 1 1 1 1 1 Manifold to mounting studs 801345 Gasket set manifold X 1 1 1 1 1 1 1 Consists of 13 5 648935 1 Gasket exhaust manifold center 13 2 648795 2 Gasket exhaust manifold end 13 7 634814 1 Gasket exhaust pipe flange 13 6 GM 103196 Stud 3 8 16 x 1 9 16 X 4 4 4 4 4 4 4 13 3 A 564 Stud 3 8 16 x 2 1 8 X 2 2 2 2 2 2 2 Manifold to block 1359710 Manifold exhaust assembly X 2 2 2 2 2 2 1378970 Bolt and lockwasher 3 8 16 x 1 3 16 X 1 21 12 A Exhaust manifold to cylinder head 1368810 Bolt hex hd X 2 2 2 2 2 2 Exhaust manifold to cylinder head right upper location 3760425 Stud exhaust pipe to right exhaust manifold X 4 4 4 4 4 4 1369904 Manifold intake assembly Use with single throat carburetor X 1 1 1 1 1 1 1364915 Bolt X 1 1 1 1 1 1 To right head center position 1371336 Bolt 3 8 16 x 1 3 8 X 9 9 9 9 9 9 Intake manifold to cylinder head 941188 Adapter exhaust manifold left X 1 1 1 1 1 1 17 9 1194041 Elbow water outlet X 1 1 1 1 1 1 17 8 9417258 Bolt hex hd 5 16 18 x 1 X 2 2 2 2 2 2 To water manifold 1369986 Flange exhaust heat control assembly X 1 1 1 1 1 1 17 10 1194629 Gasket elbow water outlet X 1 1 1 1 1 1 1357866 Gasket intake manifold X 2 2 2 2 2 2 1368777 Nipple intake manifold heater outlet X 1 1 1 1 1 1 9420944 Nut heat control to manifold X 2 2 2 2 2 2 1364935 Plate fuel distribution Between manifold and gasket X 1 1 1 1 1 1 1358803 Plate lock exhaust manifold bolt X 6 6 6 6 6 6 GM 444788 Plug water temperature switch X 1 1 1 1 1 1 GM 444571 Plug 1 8 pipe X 3 3 3 3 3 3 1 Req d in mod pipe connection on intake manifold 1 Req d in power brake connection on intake manifold M 1 Req d in A C cont connection on intake manifold 1357738 Seal intake manifold gasket X 2 2 2 2 2 2 1179444 l Spring anti rattle X 2 2 2 2 2 2 1359980 Spring oil pressure X 1 1 1 1 1 1 1370674 Thermostat exhaust manifold valve X 1 1 1 1 1 1 I 1368155 Washer 3 8 x 88 O D x 080 I D For end bolt right l l side 3rd from front X 1 1 1 1 1 1 l 44
