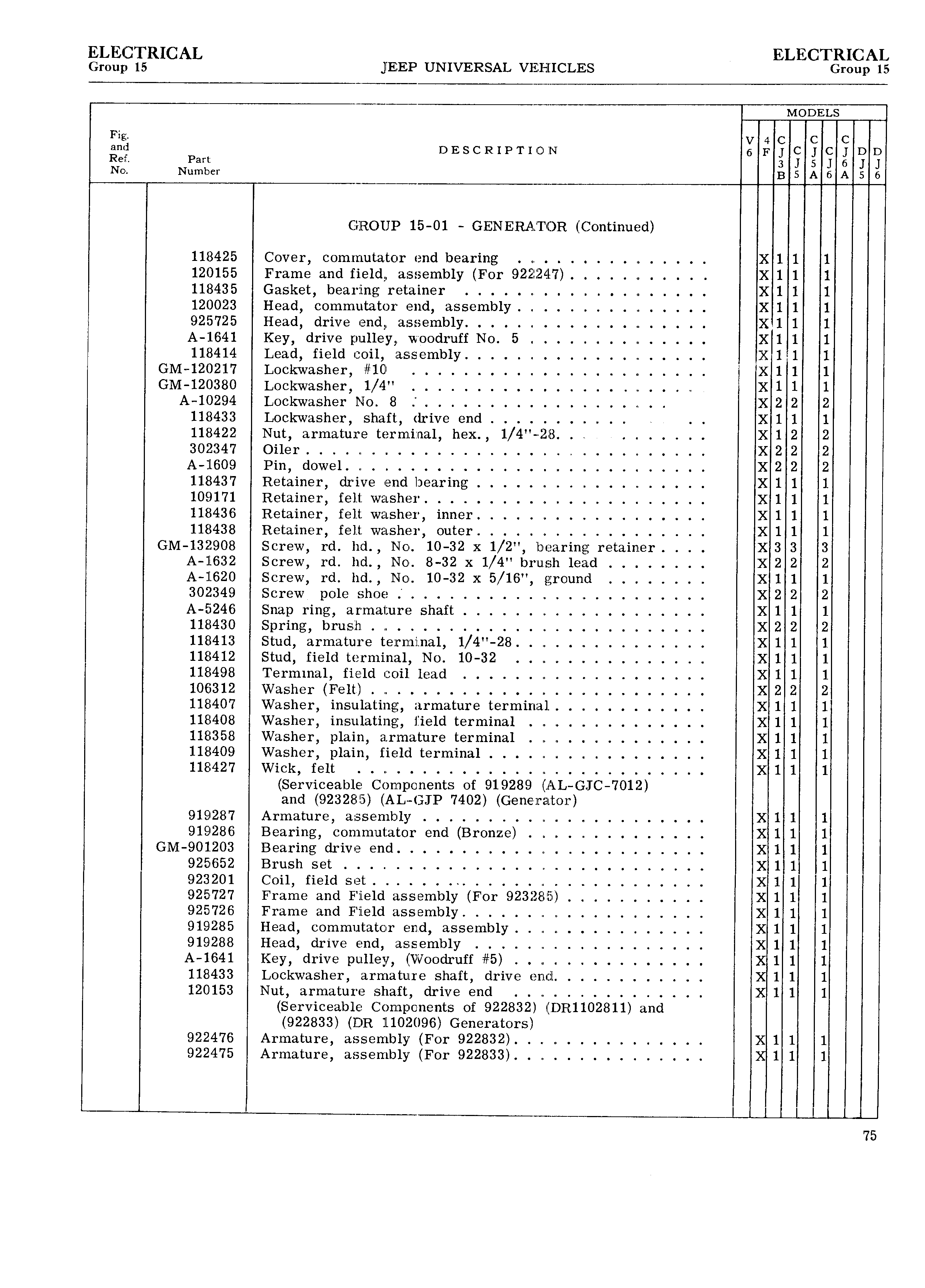

ELECTRICAL ELECTRICAL Group 15 IEEP UNIVERSAL VEHICLES Group 15 i MODELS Fig v 4 c c c and DESCRIPTIUN 5 FJC jC DD Ref Part 3 5 6 No Number B S A 6 A 5 6 GROUP 15 01 GENERA l lZ R Continued 118425 Cover commutator end bearing X 1 1 1 120155 Frame and field assembly For 9221247 X 1 1 1 118435 Gasket bearing retainer 4 X 1 1 1 120023 Head commutator end assembly X 1 1 1 925725 Head drive end assembly X 1 1 1 A 1641 Key drive pulley woodruff No 5 X 1 1 1 118414 Lead field coil assembly X 1 1 1 GM 120217 Lockwasher 10 X 1 1 1 GM 120380 Lockwasher 1 4 X 1 1 1 A 10294 Lockwasher No 8 X 2 2 2 118433 Lockwasher shaft drive end t X 1 1 1 118422 Nut armature terminal hex 1 4 28 X 1 2 2 302347 Oiler X 2 2 2 A 1609 Pin dowel X 2 2 2 118437 Retainer drive end bearing X 1 1 1 109171 Retainer felt washer X 1 1 1 118436 Retainer felt washer inner X 1 1 1 118438 Retainer felt washer outer X 1 1 1 GM 132908 Screw rd hd No 10 32 x 1 2 bearing retainer X 3 3 3 A li632 Screw rd hd No 8 32 x 1 4 brush lead X 2 2 2 A 1620 Screw rd hd No 10 32 x 5 16 ground X 1 1 1 302349 Screw pole shoe X 2 2 2 A 5246 Snap ring armature shaft X 1 1 1 118430 Spring brush X 2 2 2 118413 Stud armature terminal 1 4 28 X 1 1 1 118412 Stud field terminal No 10 32 X 1 1 1 118498 Terminal field coil lead X 1 1 1 106312 Washer Felt X 2 2 2 118407 Washer insulating armature terminal X 1 1 1 118408 Washer insulating field terminal X 1 1 1 118358 Washer plain armature terminal X 1 1 1 118409 Washer plain field terminal X 1 1 1 118427 Wick felt X 1 1 1 Serviceable Components of 919289 AL GJC 7012 and 923285 AL GJP 7402 Generator 919287 Armature assembly X 1 1 1 919286 Bearing commutator end Bronze X 1 1 1 GM 90 203 Bearing drive end X 1 1 1 925652 Brush set X 1 1 1 923201 Coil field set X 1 1 1 925727 Frame and Field assembly For 9232815 X 1 1 1 925726 Frame and Field assembly X 1 1 1 919285 Head commutator end assembly X 1 1 1 919288 Head drive end assembly X 1 1 1 A 1641 Key drive pulley Woodruff 5 X 1 1 1 118433 Lockwasher armature shaft drive end X 1 1 1 120153 Nut armature shaft drive end X 1 1 1 Serviceable Components of 922832 DR1102811 and 922833 DR 1102096 Generators 922476 Armature assembly For 922832 X 1 1 1 922475 Armature assembly For 922833 1 1 1 75
