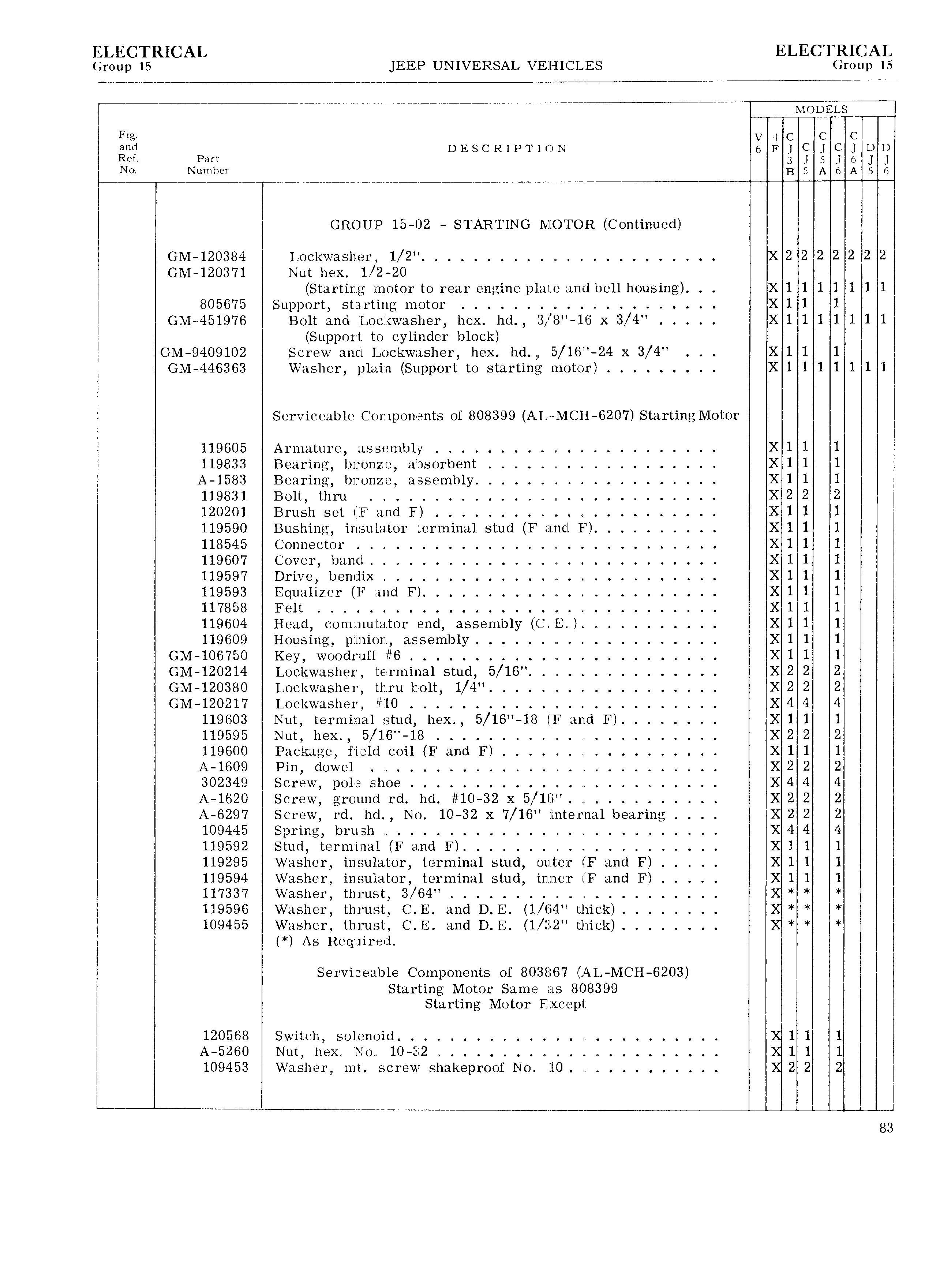

ELECTRICAL ELECTRICAL Group 15 JEEP UNIVERSAL VEHICLES iroup 15 5 T M m MODELS F T Fig v 4 c c c I and Di scRiPTi i N 6 F J C J C J DU IRGI pm 3 1516 No Number B 5 A 6 A S 6 It GROUP 15 02 STARTING MOTOR Continued I GM 1120384 Lockwasher 1 2 X 2 2 2 2 2 2 2 I GM 1120371 Nut hex 1 2 20 I Starting motor to rear engine plate and bell housing X 1 1 1 1 1 1 1 805675 Support starting motor X 1 1 1 I GM 451976 Bolt and Lockwasher hex hd 3 8 16 x 3 4 X 1 1 1 1 1 1 1 Support to cylinder block I GM 9409102 Screw and Lockwasher hex hd 5 16 24 x 3 4 X 1 1 1 I GM 446363 Washer plain Support to starting motor X 1 1 1 1 1 1 1 Serviceable Components of 808399 AI MCH 6207 Starting Motor 119605 Armature assembly X 1 1 1 I 119833 Bearing bronze absorbent i X 1 1 1 I A 1583 Bearing bronze assembly X 1 1 1 I 119831 Bolt thru X 2 2 2 120201 Brush set F and F X 1 1 1 119590 Bushing insulator terminal stud F and F X 1 1 1 118545 Connector X 1 1 1 119607 Cover band X 1 1 1 I 119597 Drive bendix X 1 1 1 119593 Equalizer F and F X 1 1 1 117858 Felt X 1 1 1 119604 Head com nutator end assembly GE X 1 1 1 I 119609 Housing pinion assembly X 1 1 1 I I GM 106750 Key woodruff 6 X1 1 1 I I GM 120214 Lockwasher terminal stud 5 16 X 2 2 2 GM 120380 Lockwasher thru bolt 1 4 t X 2 2 2 GM 120217 Lockwasher 10 X 4 4 4 119603 Nut terminal stud hex 5 16 18 F and F X 1 1 1 119595 Nut hex 5 16 18 X 2 2 2 119600 Package field coil F and F I X 1 1 1 A 1609 Pin dowe X 2 2 2 302349 Screw pole shoe X 4 4 4 A 1620 Screw ground rd hd 10 32 x 5 1i6 X 2 2 2 A 6297 Screw rd hd No 10 32 x 7 16 internal bearing X 2 2 2 109445 Spring brush X 4 4 4 119592 Stud terminal F and F X 1 1 1 I 119295 Washer insulator terminal stud outer F and F X 1 1 1 119594 Washer insulator terminal stud inner F and F X 1 1 1 I 117337 Washer thrust 3 64 119596 Washer thrust C E and D E 1 S4 thick I 109455 Washer thrust C E and D E 1 32 thick As Required I Serviceable Components of 803867 AL MCH 6203 I Starting Motor Same as 808399 Starting Motor 1 Ei xcept 120568 Switch solenoid 1 1 1 A 5260 Nut hex No 10 32 1 1 1 109453 Washer nit screw shakeproof No 10 4 2 2 2 I L l ll j 83
