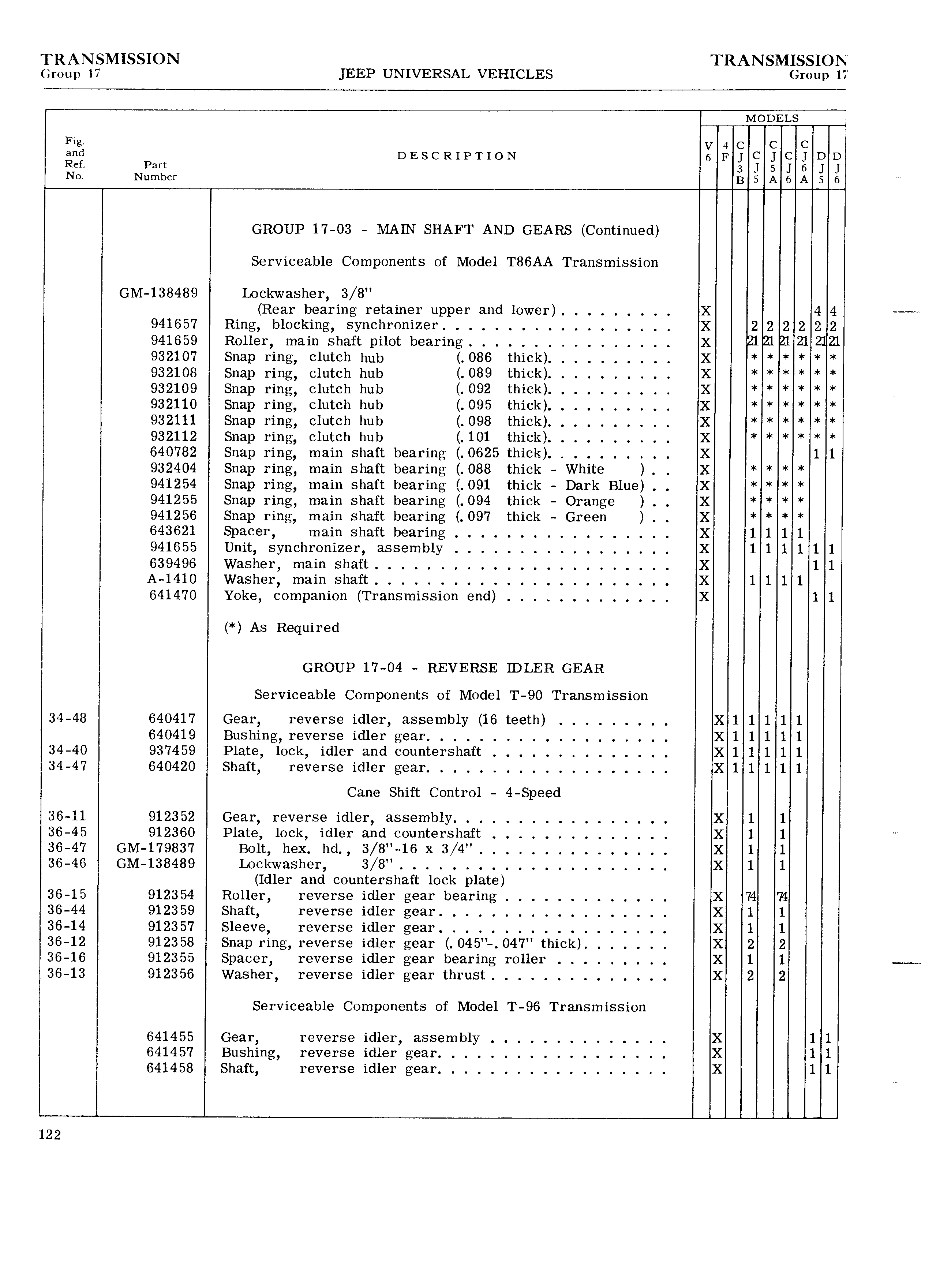

TRANSMISSION TRANSMISSION Group 17 JEEP UNIVERSAL VEHICLES Group 17 Mo ELs Fig v 4 c c c I ami DESCRIPTION 6 FJC JCJDD Rd Pm sJsJ6JJ N0 Number B 5 A 6 A 5 6 GROUP 17 03 MAIN SHAFT AND GEARS Continued Serviceable Components of Model T86AA Transmission GM 138489 Lockwasher 3 8 Rear bearing retainer upper and lower 941657 Ring blocking synchronizer 941659 Roller main shaft pilot bearing M M 932107 Snap ring clutch hub 086 thick 932108 Snap ring clutch hub 089 thick 932109 Snap ring clutch hub 092 thick 932110 Snap ring clutch hub 095 thick 932111 Snap ring clutch hub 098 thick 932112 Snap ring clutch hub 101 thick 640782 Snap ring main shaft bearing 0625 thick 932404 Snap ring main shaft bearing 088 thick White 941254 Snap ring main shaft bearing 091 thick Dark Blue 941255 Snap ring main shaft bearing 094 thick Orange 941256 Snap ring main shaft bearing 097 thick Green 643621 Spacer main shaft bearing 941655 Unit synchronizer assembly 639496 Washer main shaft A 1410 Washer main shaft 641470 Yoke companion Transmission end As Required GROUP 17 04 REVERSE HJLER GEAR Serviceable Components of Model T 90 Transmission 34 48 640417 Gear reverse idler assembly 16 teeth 640419 Bushing reverse idler gear 34 40 937459 Plate lock idler and countershaft 34 47 640420 Shaft reverse idler gear Cane Shift Control 4 Speed 36 11 912352 Gear reverse idler assembly 36 45 912360 Plate lock idler and countershaft 36 47 GM 179837 Bolt hex hd 3 8 16 x 3 4 36 46 GM 138489 Lockwasher 3 8 Idler and countershaft lock plate 36 15 912354 Roller reverse idler gear bearing 36 44 912359 Shaft reverse idler gear 36 14 912357 Sleeve reverse idler gear 36 12 912358 Snap ring reverse idler gear 045 047 thick 36 16 912355 Spacer reverse idler gear bearing roller 36 13 912356 Washer reverse idler gear thrust Serviceable Components of Model T 96 Transmission 641455 Gear reverse idler assembly 641457 Bushing reverse idler gear 641458 Shaft reverse idler gear 122
