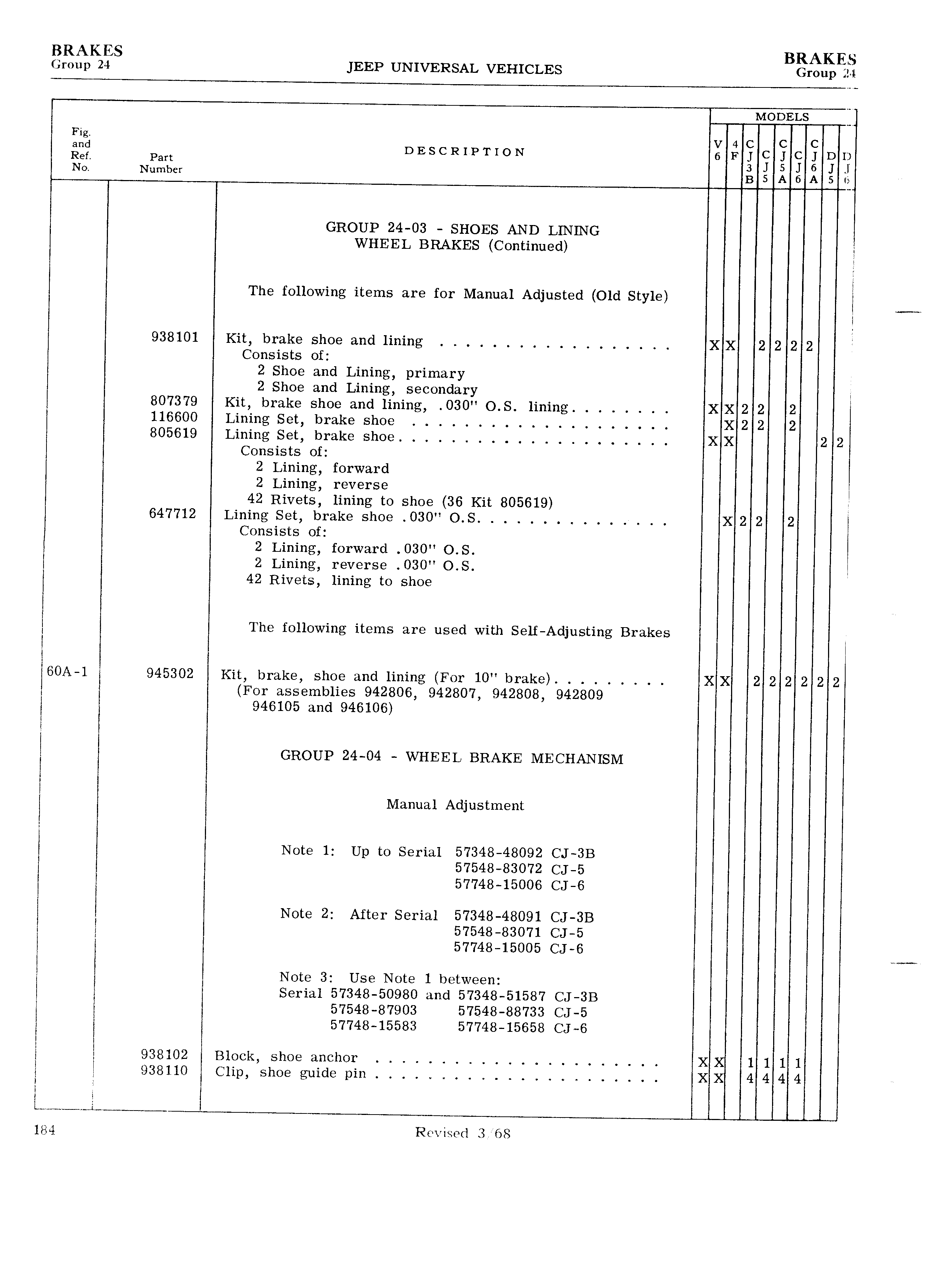

BRAKES BRAKES Group 24 JEEP UNIVERSAL VEHICLES Group 24 MODELS I Fig v 4 c c c d DESCRIPTION 6 F J C j C j D1 Refi Part 3 5 6 j I No Number B 5 A 6 A 5 ni GROUP 24 03 SHOES AND LINING WHEEL BRAKES Continued The following items are for Manual Adjusted Old Style 938101 Kit brake shoe and lining I Consists of 2 Shoe and Lining primary 2 Shoe and Lining secondary I Kit brake slhoekandhlining O30 O S lining I Lining Se ra e s oe 805619 Lining Set brake shoe 2 Consists of 2 Lining forward I 2 Lining reverse I 42 Rivets lining to shoe 36 Kit 805619 g 647712 Lining Set brake shoe O30 O S Consists of 2 Lining forward 030 O S I 2 Lining reverse 030 O S I I 42 Rivets lining to shoe I The following items are used with Self Adjusting Brakes I I I I I 60A 1 I 945302 Kit brake shoe and lining For 10 brake 2 I For assemblies 942806 942807 942808 942809 I I 946105 and 946106 I I I GROUP 24 04 WHEEL BRAKE MECHANISM 1 I I Manual Adjustment I Note 1 Up to Serial 57348 48092 CJ 3B 57548 83072 CJ 5 I 57748 15006 CJ 6 I I Note 2 After Serial 57348 48091 CJ 3B 57548 83071 CJ 5 I I 57748 15005 CJ 6 m I I Note 3 Use Note 1 between I I Serial 57348 50980 and 57348 51587 CJ 3B I I 57548 87903 57548 88733 CJ 5 I I 57748 15583 57748 15658 CJ 6 I I I I 938102 Block shoe anchor I 938110 Clip shoe guide pin I I I I X I i L jg Revised 3 68
