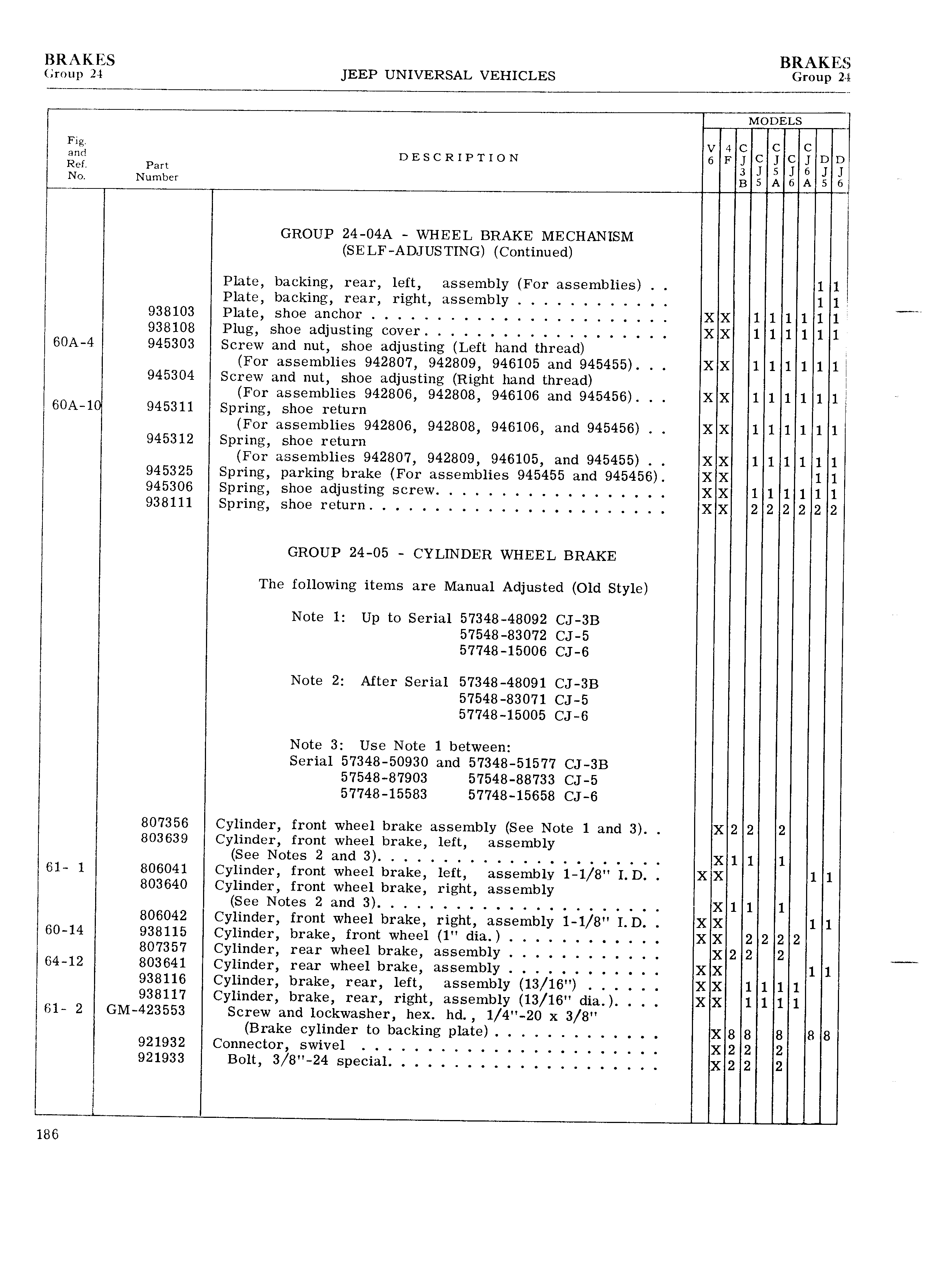

BRAKES g Ig54S JEEP UNIVERSAL VEHICLES Group 24 Momms Fig v 4 c C C and DESCRIPTION 6 FJC JCJDD Ref Part 3J5J6JJ N0 Number B 5 A 6 A 5 6j j l GROUP 24 04A WHEEL BRAKE MECHANISM SELF ADJUSTING Continued Plate backing rear left assembly For assemblies 1 Plate backing rear right assembly 1 V 938103 Plate shoe anchor X X 1 938108 Plug shoe adjusting cover X X 1 60A 4 945303 Screw and nut shoe adjusting Left hand thread For assemblies 942807 942809 946105 and 945455 X X 1 945304 Screw and nut shoe adjusting Right hand thread For assemblies 942806 942808 946106 and 945456 X X 1 60A l 945311 Spring shoe return For assemblies 942806 942808 946106 and 945456 XX 1 945312 Spring shoe return For assemblies 942807 942809 946105 and 945455 XX 1 945325 Spring parking brake For assemblies 945455 and 945456 X X 1 945306 Spring shoe adjusting screw X X 1 938111 Spring shoe return X X 2 I GROUP 24 05 CYLINDER WHEEL BRAKE The following items are Manual Adjusted Old Style Note 1 Up to Serial 57348 48092 CJ 3B 57548 83072 CJ 5 57748 15006 CJ 6 Note 2 After Serial 57348 48091 CJ 3B 57548 83071 CJ 5 57748 15005 CJ 6 Note 3 Use Note 1 between Serial 57348 50930 and 57348 51577 CJ 3B 57548 87903 57548 88733 CJ 5 57748 15583 57748 15658 CJ 6 807356 Cylinder front wheel brake assembly See Note 1 and 3 X 803639 Cylinder front wheel brake left assembly See Notes 2 and 3 X 61 1 806041 Cylinder front wheel brake left assembly 1 1 8 I D XX 1 803640 Cylinder front wheel brake right assembly See Notes 2 and 3 X 806042 Cylinder front wheel brake right assembly 1 1 8 I D X X 1 60 14 938115 Cylinder brake front wheel 1 dia X X 807357 Cylinder rear wheel brake assembly X 64 12 803641 Cylinder rear wheel brake assembly X X 1 938116 Cylinder brake rear left assembly 13 16 XX 938117 Cylinder brake rear right assembly 13 16 dia XX 61 2 GM 423553 Screw and lockwasher hex hd 1 4 20 x 3 8 I Brake cylinder to backing plate X 8 921932 Connector swivel X 921933 Bolt 3 8 24 special X L l 186
