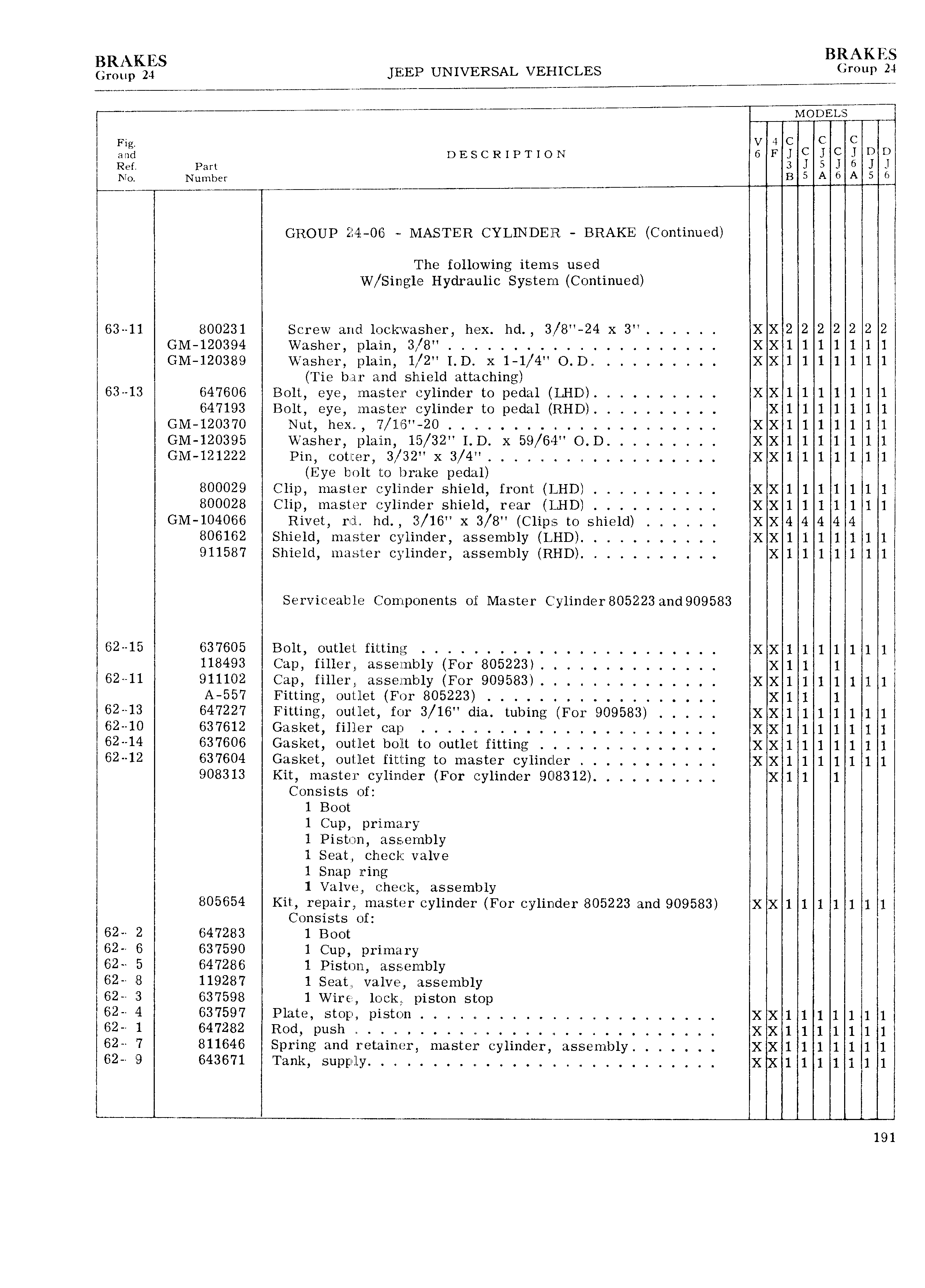

i BRAKES JEEP UNIVERSAL VEHICLES Gm 2 I 1 iQiH i I mg v A c C C and DESCRIPTION 6 Fg Nfeziia B A A A A A A I I GROUP 24 06I MASTER CYLINDER BRAKE Continued I The following items used I W Sinigle Hydraulic System Continued I I I i63 11 800231 Screw and lock vasher hex hd 3 8 24 X 3 X X 2 2 2 2 2 2 2 GM 120394 Washer plain 3 8 XX 1 1 1 1 1 1 1 GM 120389 Washer plain 1 2 I D X 1 1 4 0 1 XX 1 1 1 1 1 1 1 Tie bar and shield attaching 63 13 647606 Bolt eye master cylinder to pedal LHD X X 1 1 1 1 1 1 1 647193 Bolt eye master cylinder to pedal ZRHD X 1 1 1 1 1 1 1 GM 120370 Nut heX 7 16 20 XX 1 1 1 1 1 1 1 I GM 120395 Washer plain 15 32 I D X 59 64 O D X X 1 1 1 1 1 1 1 I GM 121222 Pin cotter 3 32 X 3 4 XX 1 1 1 1 1 1 1 Eye bolt to Iiirake pedal 800029 Clip master cylinder shield front LHD XX 1 1 1 1 1 1 1 I 800028 Clip master cylinder shield rear LHD XX 1 1 1 1 1 1 1 GM 104066 Rivet rd hd 3 16 X 3 8 Clips to shield X X 4 4 4 4 4 806162 Shield master cylinder assembly LHD XX 1 1 1 1 1 1 1 911587 Shield master cylinder assembly RHD X 1 1 1 1 1 1 ll I Serviceable Components of Master Cylinder 805223 and909583 I62 15 637605 Bolt outlet fittintgg X X 1 1 1 1 1 1 1 118493 Cap filler assembly For 805223 X 1 1 1 I62 11 911102 Cap filler assembly For 909583 X X 1 1 1 1 1 1 1 A 557 Fitting outlet Fer 805223 X 1 1 1 62 13 647227 Fitting outlet for 3 16 dia tubing For 909583 XX 1 1 1 1 1 1 1 62 10 637612 Gasket filler cap XX 1 1 1 1 1 1 1 62 14 637606 Gasket outlet bolt to outlet fitting X X 1 1 1 1 1 1 1 I 62 12 637604 Gasket outlet fitting to master cylinder X X 1 1 1 1 1 1 1 908313 Kit master cylinder For cylinder 908312 X 1 1 1 Consists of 1 Boot I 1 Cup primary I 1 Pist iz n assembly 1 Seat check valve g 1 Snap ring 1 Valve check assembly 805654 Kit repair master cylinder For cylinder 805223 and 909583 X X 1 1 1 1 1 1 1 I I Consists of I 62 2 647283 1 Boot 62 6 637590 1 Cup primary I 62 5 647286 1 Pisttm assembly 62 8 119287 1 Seat valve assembly I I 62 3 637598 1 Wire lock piston s 0p 62 4 637597 Plate stop pi stc n XX 1 1 1 1 1 1 1 62 1 647282 Rod push I XX 1 1 1 1 1 1 l 62 7 811646 Spring and retainer master cylinder assembly XX 1 1 1 1 1 1 1 62 9 643671 Tank supply X 1 1 1 1 1 1 1 191
