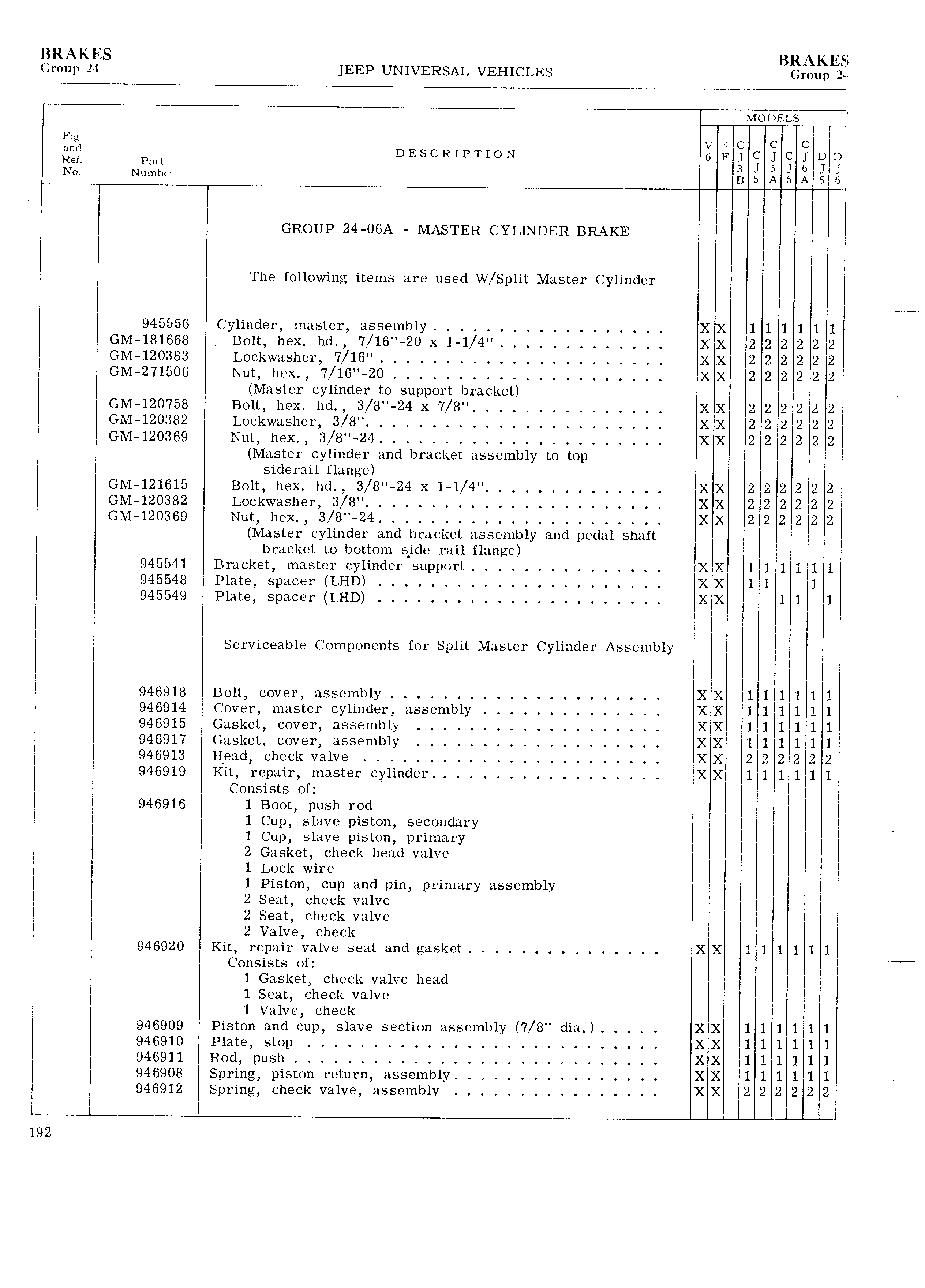

BRAKES BRAKES Group 24 JEEP UNIVERSAL VEHICLES Group 24 MODELS Fig C Md DESCRIPTION Q 1 C JDD Ref Part 3 J 5 J 6 J J l o Number B 5 A 6 A 5 6 I I GROUP 24 06A MASTER CYLINDER BRAKE I I I The following items are used W Split Master Cylinder I 945556 Cylinder master assembly XX 1 1 1 1 1 1 GM 181668 Bolt hex hd 7 16 20 x 1 1 4 XX 2 2 2 2 2 2 GM 120383 Lockwasher 7 16 XX 2 2 2 2 2 2 GM 271506 Nut hex 7 16 20 X X 2 2 2 2 2 2 I 9 7 I Master cylinder to support bracket GM 120758 Bolt hex hd 3 8 24 x 7 8 XX 2 2 2 2 2 2 I GM 120382 Lockwasher 3 8 X X 2 2 2 2 2 2 GM 120369 Nut hex 3 8 24 XX 2 2 2 2 2 2 I Master cylinder and bracket assembly to top siderail flange GM 121615 Bolt hex hd 3 8 24 x 1 1 4 X X 2 2 2 2 2 GM 120382 Lockwasher 3 8 XX 2 2 2 2 2 2I GM 120369 Nut hex I3 8 24 XX 2 2 2 2 2 2I Master cylinder and bracket assembly and pedal shaft bracket to bottom s ide rail flange I 945541 Bracket master cylinder support X X 1 1 1 1 1 1 945548 Plate spacer LHD XX 1 1 1 945549 Plate spacer LHD X X 1 1 1 I I I Serviceable Components for Split Master Cylinder Assembly I I 946918 Bolt cover assembly XX 1 1 1 1 1 1 946914 Cover master cylinder assembly XX 1 1 1 1 1 1 946915 Gasket cover assembly XX I1 1 1 1 1 1 I 946917 Gasket cover assembly XX 1 1 1 1 1 1 I 946913 H ead check valve X X 2 2 2 2 2 2 946919 Kit repair master cylinder X X 1 1 1 1 1 1 I Consists of I 946916 1 Boot push rod I I I 1 Cup slave piston secondary I 1 Cup slave piston primary I I I 2 Gasket check head valve I 1 Lock wire I 1 Piston cup and pin primary assembly I I 2 Seat check valve I 2 Seat check valve I I 2 Va1v e check I I I 94692 0 Kit repair valve seat and gasket XX 1 1 1 1 1 1I Consists of I 1 Gasket check valve head I 1 Seat check valve 1 Valve check I 946909 Piston and cup slave section assembly 7 8 dia X X 1 1 1 1 1 1 I 946910 Plate stop XX 1 1 1 1 1 1 946911 Rod push X X 1 1 1 1 1 1 I 946908 Spring piston return assembly XX 1 1 1 1 1 1 I 946912 Spring check valve assembly X X 2 2 2 2 2 2 192
