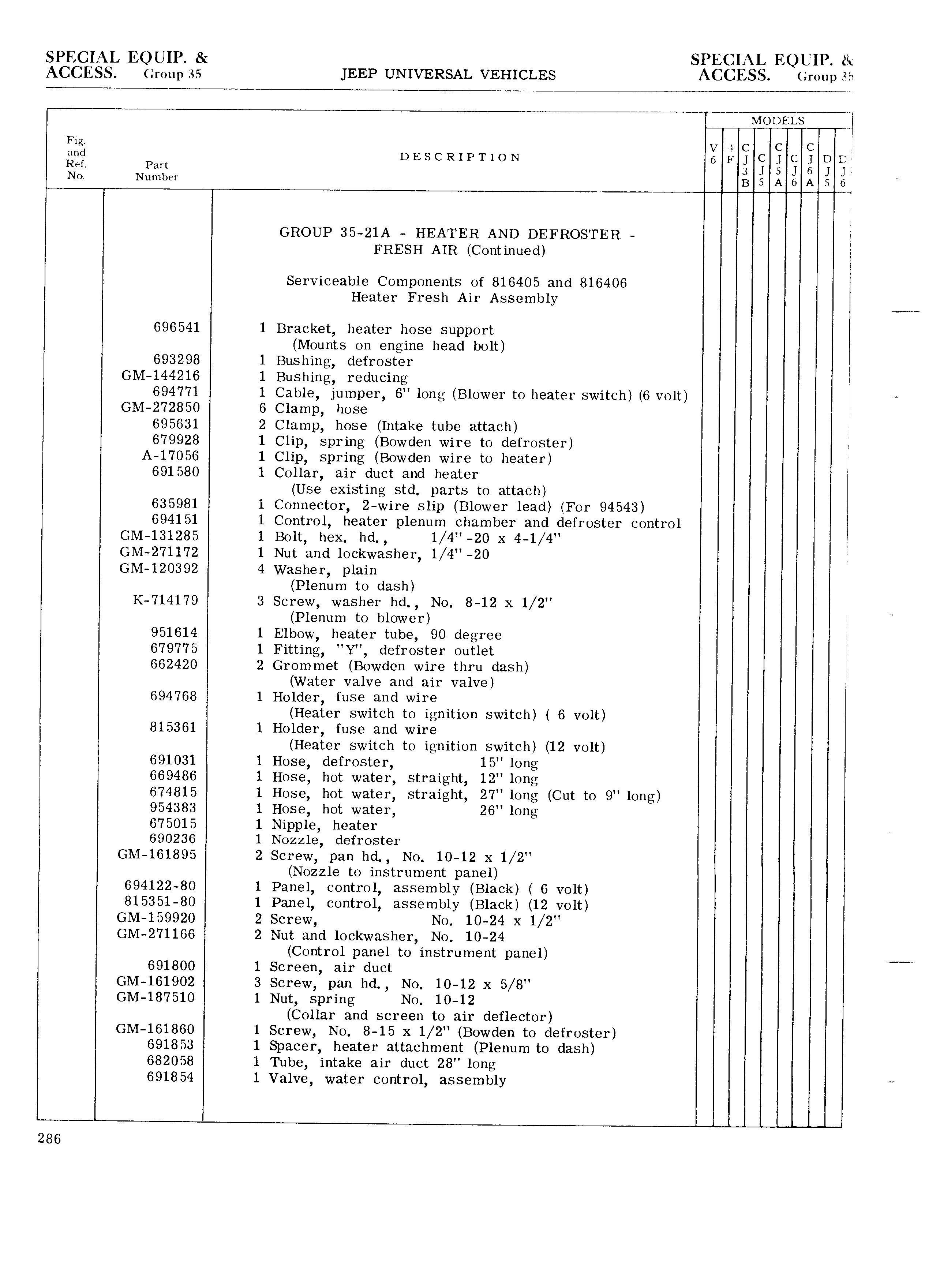

SPECIAL EQUIP SPECIAL EQUIP It ACCESS Group 35 JEEP UNIVERSAL VEHICLES ACCESS Group 3 f MODELS Fig v 4 c c C I and 1 EscR11 r1oN 6 EJC JCJDEI Ref Part 3 SJ6J No Number B 5 A 6 A 5 6 V GROUP 35 21A HEATER AND DEFROSTER I FRESH AIR Continued I Serviceable Components of 816405 and 816406 Heater Fresh Air Assembly 696541 1 Bracket heater hose support Mounts on engine head bolt 693298 1 Bushing defroster GM 144216 1 Bushing reducing 694771 1 Cable jumper 6 long Blower to heater switch 6 volt GM 272850 6 Clamp hose I 695631 2 Clamp hose Intake tube attach 679928 1 Clip spring Bowden wire to defroster A 17056 1 Clip spring Bowden wire to heater 691580 1 Collar air duct and heater Use existing std parts to attach 635981 1 Connector 2 wire slip Blower lead For 94543 694151 1 Control heater plenum chamber and defroster control 1 GM 131285 1 Bolt hex hd 1 4 20 x 4 1 4 GM 271172 1 Nut and lockwasher 1 4 20 I GM 120392 4 Washer plain Plenum to dash K 714179 3 Screw washer hd No 8 12 x 1 2 Plenum to blower I A 951614 1 Elbow heater tube 90 degree 679775 1 Fitting Y defroster outlet 662420 2 Grommet Bowden wire thru dash Water valve and air valve I 694768 1 Holder fuse and wire Heater switch to ignition switch 6 volt 815361 1 Holder fuse and wire Heater switch to ignition switch 12 volt 691031 1 Hose defroster 15 long 669486 1 Hose hot water straight 12 long 674815 1 Hose hot water straight 27 long Cut to 9 long 954383 1 Hose hot water 26 long 675015 1 Nipple heater 690236 1 Nozzle defroster GM 161895 2 Screw pan hd N0 10 12 x 1 2 Nozzle to instrument panel 694122 80 1 Panel control assembly Black 6 volt 815351 80 1 Panel control assembly Black 12 volt GM 159920 2 Screw No 10 24 x 1 2 GM 271166 2 Nut and lockwasher No 10 24 Control panel to instrument panel 691800 1 Screen air duct GM 161902 3 Screw pan hd No 10 12 x 5 8 GM 187510 1 Nut spring No 10 12 Collar and screen to air deflector GM 161860 1 Screw No 8 15 x 1 2 Bowden to defroster 691853 1 Spacer heater attachment Plenum to dash 682058 1 Tube intake air duct 28 long 691854 1 Valve water control assembly 286
