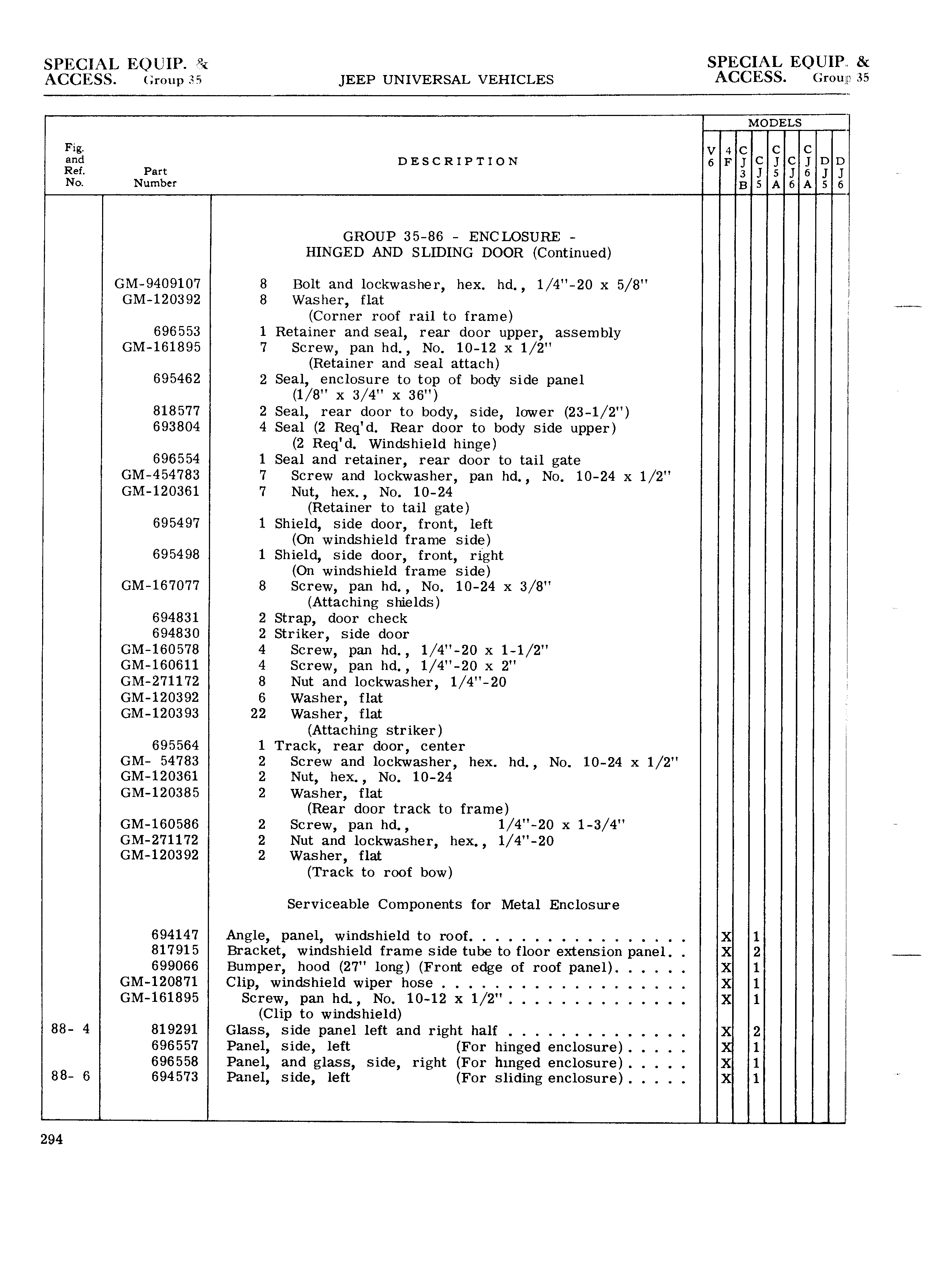

SPECIAL EQUIR 2 SPECIAL EQUIP ACCESS Group as JEEP UN1vERsAL VEHICLES ACCESS 0LI sa MODELS Fig V 4 C C C and DESCRIPTION 6 FJC JCJDD Ref Part 3 J s J 6 J J No Number B S A 6 A S 6 GROUP 35 86 ENCLOSURE HINGED AND SLIDING DOOR Continued GM 9409107 8 Bolt and lockwasher hex hd 1 4 20 x 5 8 GM 120392 8 Washer flat r Corner roof rail to frame S 696553 1 Retainer and seal rear door upper assembly GM 161895 7 Screw pan hd No 10 12 x 1 2 Retainer and seal attach 695462 2 Seal enclosure to top of body side panel 1 8 x 3 4 x 36 818577 2 Seal rear door to body side lower 23 1 2 693804 4 Seal 2 Req d Rear door to body side upper 2 Req d Windshield hinge 696554 1 Seal and retainer rear door to tail gate GM 454783 7 Screw and lockwasher pan hd No 10 24 x 1 2 GM 120361 7 Nut hex No 10 24 Retainer to tail gate 695497 1 Shield side door front left On windshield frame side 695498 1 Shield side door front right On windshield frame side GM 167077 8 Screw pan hd No 10 24 x 3 8 Attaching shields 694831 2 Strap door check 694830 2 Striker side door GM 160578 4 Screw pan hd 1 4 20 x 1 1 2 GM l60611 4 Screw pan hd 1 4 20 x 2 GM 271172 8 Nut and lockwasher 1 4 20 GM 120392 6 Washer flat GM 120393 22 Washer flat Attaching striker 695564 1 Track rear door center GM 54783 2 Screw and lockwasher hex hd No 10 24 x 1 2 GM 120361 2 Nut hex No 10 24 GM 120385 2 Washer flat Rear door track to frame GM 160586 2 Screw pan hd 1 4 20 x 1 3 4 GM 271172 2 Nut and lockwasher hex 1 4 2O GM 120392 2 Washer flat Track to roof bow Serviceable Components for Metal Enclosure 694147 Angle panel windshield to roof 817915 Bracket windshield frame side tube to floor extension panel 699066 Bumper hood 27 long Front edge of roof panel GM 120871 Clip windshield wiper hose GM 161895 Screw pan hd No 10 12 x 1 2 Clip to windshield 88 4 819291 Glass side panel left and right half 696557 Panel side left For hinged enclosure 4 696558 Panel and glass side right For hinged enclosure 88 6 694573 Panel side left For sliding enclosure 294
