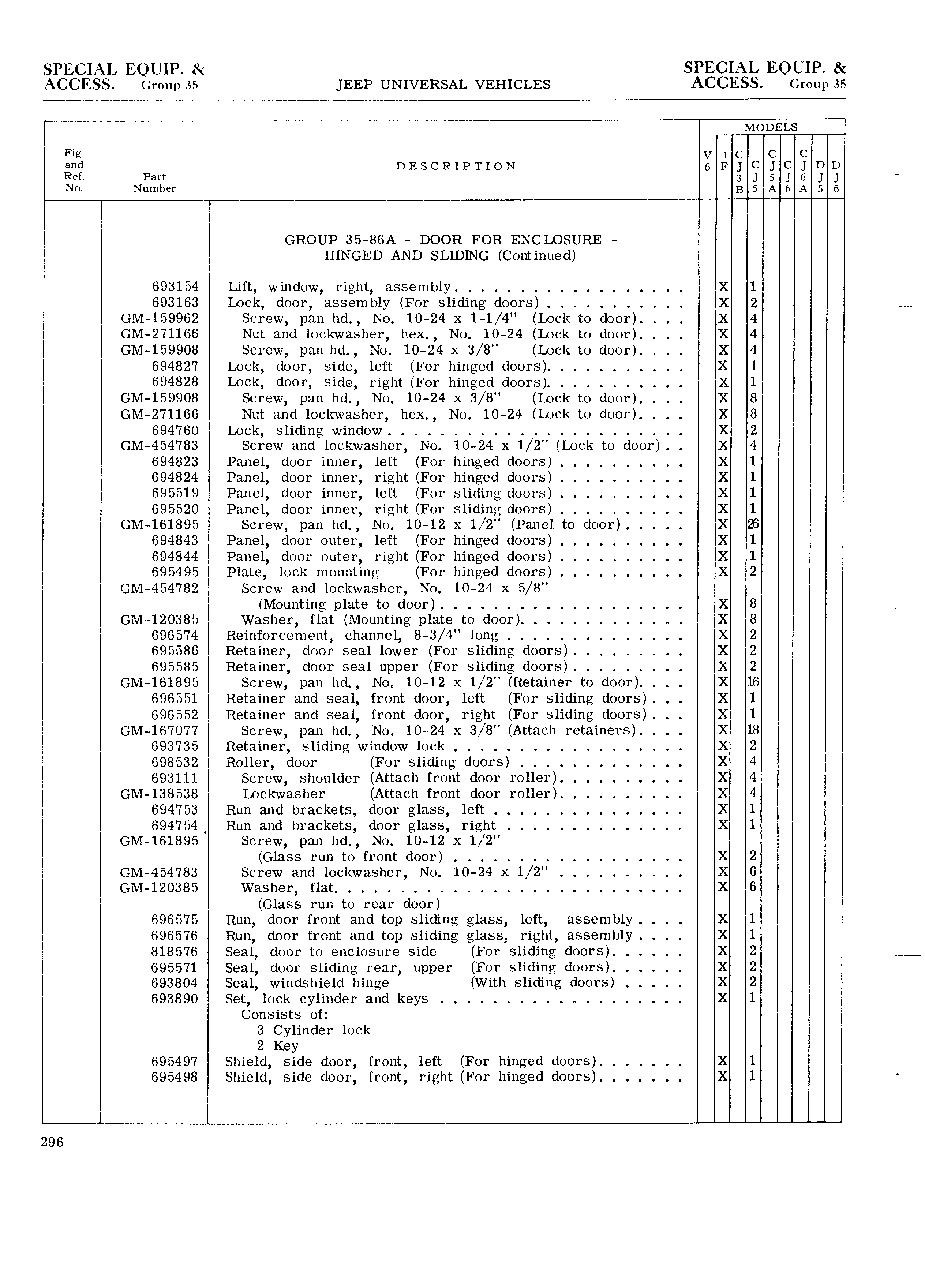

SPECIAL EQUIP 8 SPECIAL EQUIP ACCESS Group ss JEEP UNIVERSAL VEHICLES ACCESS Group ss MODELS Fig v 4 c c c ami DEscR1i T1oN 6 F50 JCJDD Ref Part 3 J S 6 J J N0 Number B 5 A 6 A 5 6 GROUP 35 86A DOOR FOR ENCLOSURE HINGED AND SLIDING Continued 693154 Lift window right assembly 1 693163 Lock door assembly For sliding doors 2 im GM 159962 Screw pan hd No 10 24 x 1 1 4 Lock to door 4 I GM 271166 Nut and lockwasher hex N0 10 24 Lock to door 4 GM 159908 Screw pan hd N0 10 24 x 3 8 Lock t0 door 4 694827 Lock door side left For hinged doors 1 694828 Lock door side right For hinged doors 1 GM 159908 Screw pan hd No 10 24 x 3 8 Lock to door 8 GM 271166 Nut and lockwasher hex No 10 24 Lock t0 door 8 694760 Lock sliding window 2 GM 454783 Screw and lockwasher No 10 24 x 1 2 Lock to door 4 694823 Panel door inner left For hinged doors 1 694824 Panel door inner right For hinged doors 1 695519 Panel door inner left For sliding doors 1 695520 Panel door inner right For sliding doors 1 GM 161895 Screw pan hd No 10 12 x 1 2 Panel to door 26 694843 Panel door outer left For hinged doors 1 694844 Panel door outer right For hinged doors 1 695495 Plate lock mounting For hinged doors 2 GM 454782 Screw and lockwasher No 10 24 x 5 8 I Mounting plate to door 8 r GM 120385 Washer flat Mounting plate to door 8 696574 Reinforcement channel 8 3 4 long 2 g 695586 Retainer door seal lower For sliding doors 2 695585 Retainer door seal upper For sliding doors 2 GM 161895 Screw pan hd No 10 12 x 1 2 Retainer to door 16 696551 Retainer and seal front door left For sliding doors 1 696552 Retainer and seal front door right For sliding doors 1 GM 167077 Screw pan hd No 10 24 x 3 8 Attach retainers 18 Z 693735 Retainer sliding window lock 2 i 698532 Roller door For sliding doors 4 693111 Screw shoulder Attach front door roller 4 GM l38538 Lockwasher Attach front door roller 4 694753 Run and brackets door glass left 1 694754 Run and brackets door glass right 1 GM 161895 Screw pan hd No 10 12 x 1 2 Glass run to front door 2 GM 454783 Screw and lockwasher No 10 24 x 1 2 6 GM 120385 Washer flat 6 Glass run to rear door 696575 Run door front and top sliding glass left assembly 1 696576 Run door front and top sliding glass right assembly 1 818576 Seal door to enclosure side For sliding doors 2 695571 Seal door sliding rear upper For sliding doors 2 693804 Seal windshield hinge With sliding doors 2 693890 Set lock cylinder and keys 1 Consists of 3 Cylinder lock 2 Key 695497 Shield side door front left For hinged doors 1 695498 Shield side door front right For hinged doors 1 W 296
